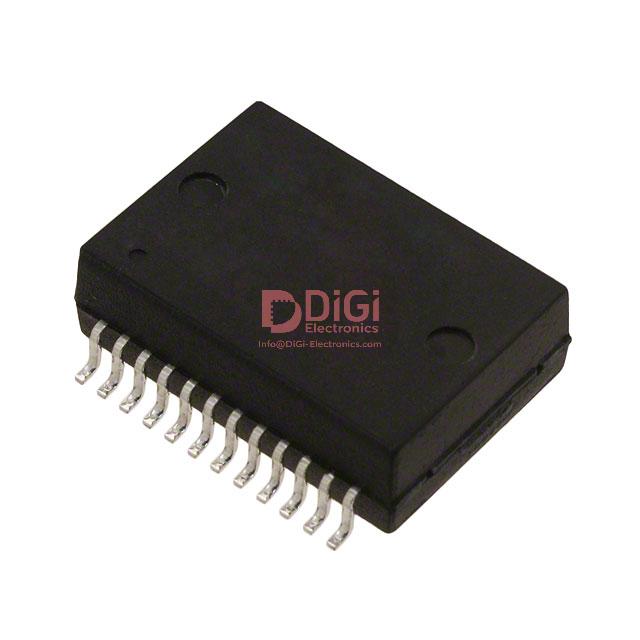

This Pulse Electronics H5007T is a pulse transformer specifically designed to support 10/100/1000 Base-T Ethernet applications. It features a 1CT:1 turns ratio for the transmitter and a 1CT:1CT turns ratio for the receiver.
The transformer operates within a temperature range of 0°C to 70°C and is housed in a surface mount package, facilitating integration into various electronic designs. Key electrical specifications include a maximum return loss of -18dB at 1-100MHz and differential to common mode rejection values up to -43dB.
With a Hipot rating of 1500V RMS, this component ensures reliable performance in demanding network environments. Its compact dimensions of 17.53mm L x 12.20mm W and a height of 5.51mm make it suitable for space-constrained applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the H5007T is 0°C to 70°C.
The H5007T has a 1CT:1 turns ratio for the transmitter and a 1CT:1CT turns ratio for the receiver.
The H5007T is designed for LAN 10/100/1000 Base-T applications.
The H5007T features a surface mount type.
The Hipot rating for the H5007T is 1500V RMS.
