H455CBC

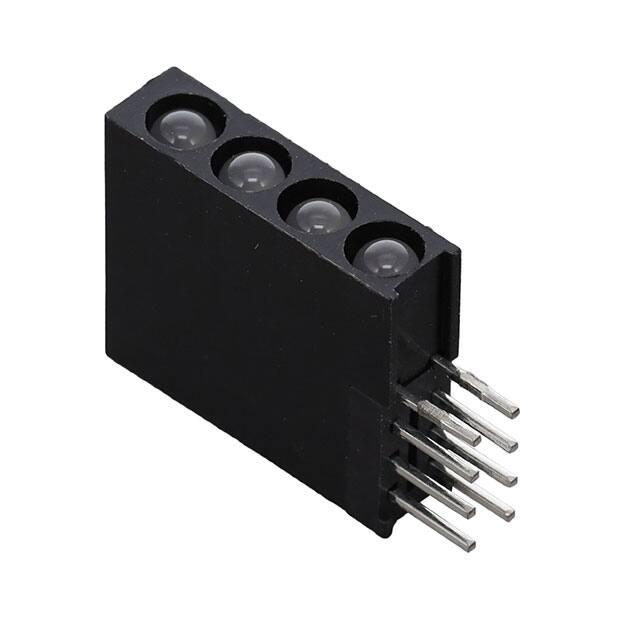

The Bivar H455CBC is an LED PCB indicator designed for circuit board mounting. This component features four diodes, providing both red and green light outputs. Each diode operates with a typical current of 20mA and a forward voltage of 2.1V for green and 2V for red. The indicator has a 3mm lens diameter with a diffused white finish, offering a round, domed top style. The viewing angle is 45 degrees, and the luminosity for both colors is rated at 6mcd. The wavelengths are 568nm for green and 625nm for red. This THT mountable component is suitable for various electronic applications requiring visual indication.

This LED indicator is housed within a 3mm T-1 package. It is designed for Through-Hole Technology (THT) mounting. The diffused white lens ensures a consistent light spread. The dual color capability (red and green) allows for status signaling or multi-function indicators on a PCB. With a typical current rating of 150mA per color and a luminosity of 6mcd, it provides clear visual feedback. The operating voltages are 2.1V for green and 2V for red, with a 45° viewing angle for broad visibility.
