| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Circuit | |
| Contact Rating @ Voltage | |
| Delay Time | |
| Function | |
| Mounting Type | |
| Relay Type | |
| Standards | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Timing Adjustment Method | |
| Timing Initiate Method | |
| Voltage |

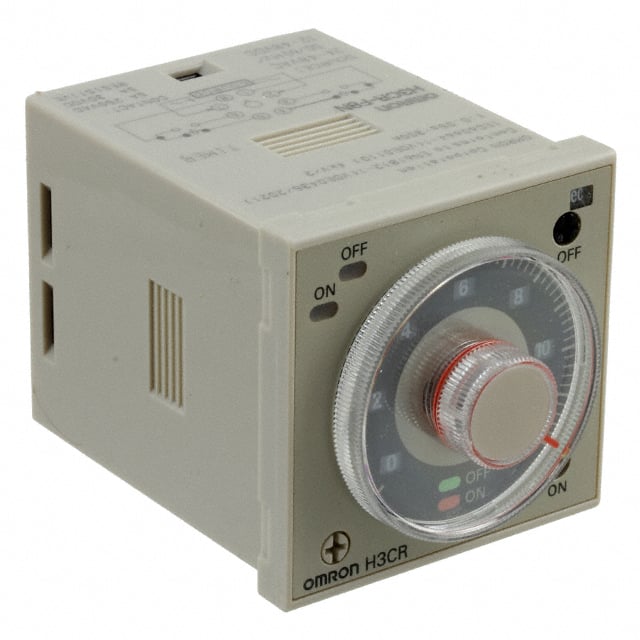

The Omron H3CR-F8 AC100-240/DC100-125 is a versatile solid-state timer designed for various industrial applications. This timer operates with a wide voltage range of 100 to 240 VAC or 100 to 125 VDC, reducing the need for multiple part numbers.
Key electrical specifications include a delay time adjustable from 0.05 seconds up to 30 hours, and a contact rating of 5A at 250VAC. The unit provides a DPDT (2 Form C) output circuit and is initiated by input voltage. It supports repeat cycle and twin timer functions.
Designed for socketable mounting, this timer utilizes an 8-pin (octal) termination style for easy integration into existing systems. The timing adjustment is conveniently managed via a hand dial, and the circuit is a mechanical relay type. The H3CR-F8 series conforms to EN61812-1 and IEC60664-1 standards and carries UL, CSA, Lloyds, and NK approvals.
The voltage range is 100 ~ 240 VAC and 100 ~ 125 VDC.
The maximum delay time is 30 hours.
The contact rating is 5A at 250VAC.
It supports Repeat Cycle and Twin Timer functions.
Timing is adjusted using a hand dial.
It has a DPDT (2 Form C) output circuit.
It conforms to EN61812-1 and IEC60664-1 4 kV/2.
