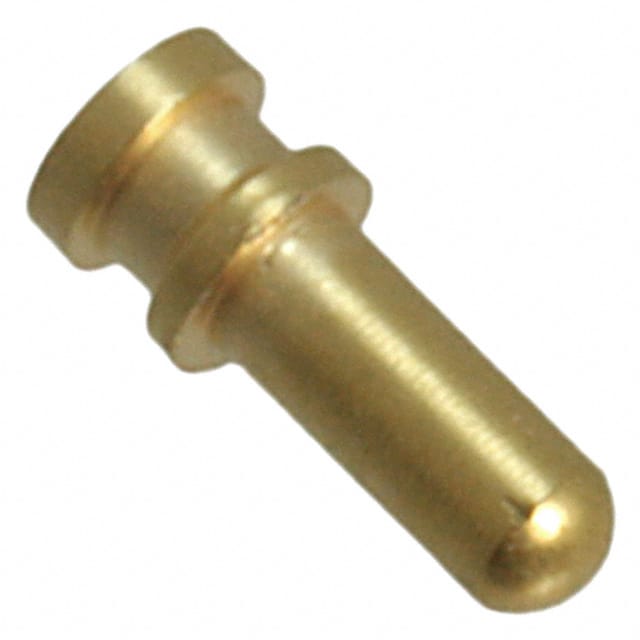

Mfr Part #:

H3155-05

Name: H3155-05
Brand: Harwin Inc.
SKU: H3155-05

Mfr Name: Harwin Inc.

Description:

CONN PIN RCPT .018-.020 SOLDER

Stock on Request

H3155-05 Description

Short technical summary and product information.

CONN PIN RCPT .018-.020 SOLDER

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

H3155-01

Harwin Inc.

CONN PIN RCPT .018-.020 SOLDER

H3153-01

Harwin Inc.

CONN PIN RCPT .018-.020 SOLDER

H3153-05

Harwin Inc.

CONN PIN RCPT .018-.020 SOLDER

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	Harwin Inc.
Accepts Pin Diameter	0.018" ~ 0.020" (0.46mm ~ 0.51mm)
Contact Finish	Gold
Contact Finish Thickness	3.94µin (0.10µm)
Contact Material	Beryllium Copper
Flange Diameter	0.057" (1.45mm)
Length	0.142" (3.61mm)
Mounting Hole Diameter	0.039" ~ 0.043" (0.99mm ~ 1.09mm)
Pin Hole Diameter	0.043" (1.09mm)
Socket Depth	0.124" (3.15mm)
Tail Type	No Tail
Termination	Solder
