Mfr Part #:

H2MA305D101100

Name: H2MA305D101100
Brand: Unictron Technologies Corporation
SKU: H2MA305D101100

Description:

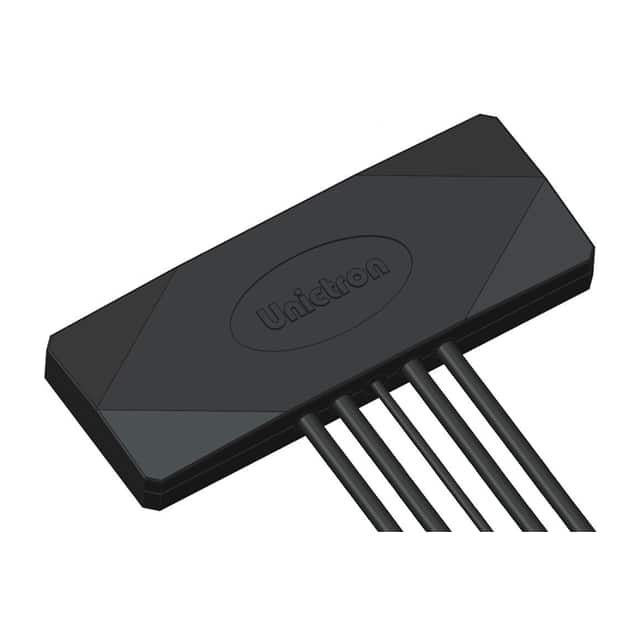

5IN1 EXTERNAL ANTENNA GNSS + LTE

Stock on Request

H2MA305D101100 Description

Short technical summary and product information.

5IN1 EXTERNAL ANTENNA GNSS + LTE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Unictron Technologies Corporation
Antenna Type	Flat Patch
Applications	Beidou, Galileo, GLONASS, GPS, GNSS, LTE, Wi-Fi
Features	Cable - 2m, LNA
Frequency (Center	829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.35GHz, 2.442GHz, 2.59GHz, 3.6GHz, 5.5GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.484GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz
Gain	1.1dBi, 1.2dBi, 1.4dBi, 1.5dBi, 1.8dBi, 2dBi, 2.4dBi, 2.5dBi, 2.6dBi, 3.1dBi, 3.2dBi
Height (Max)	0.669" (17.00mm)
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands	10
RF Family	Cellular, Navigation, WiFi
Termination	SMA Male
VSWR	2, 3, 5
