| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Thickness | |
| Contact Finish | |
| Contact Material | |
| Flange Diameter | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Pin Size | |
| Tape & Reel | |
| Terminal Style | |
| Terminal Type | |
| Termination |

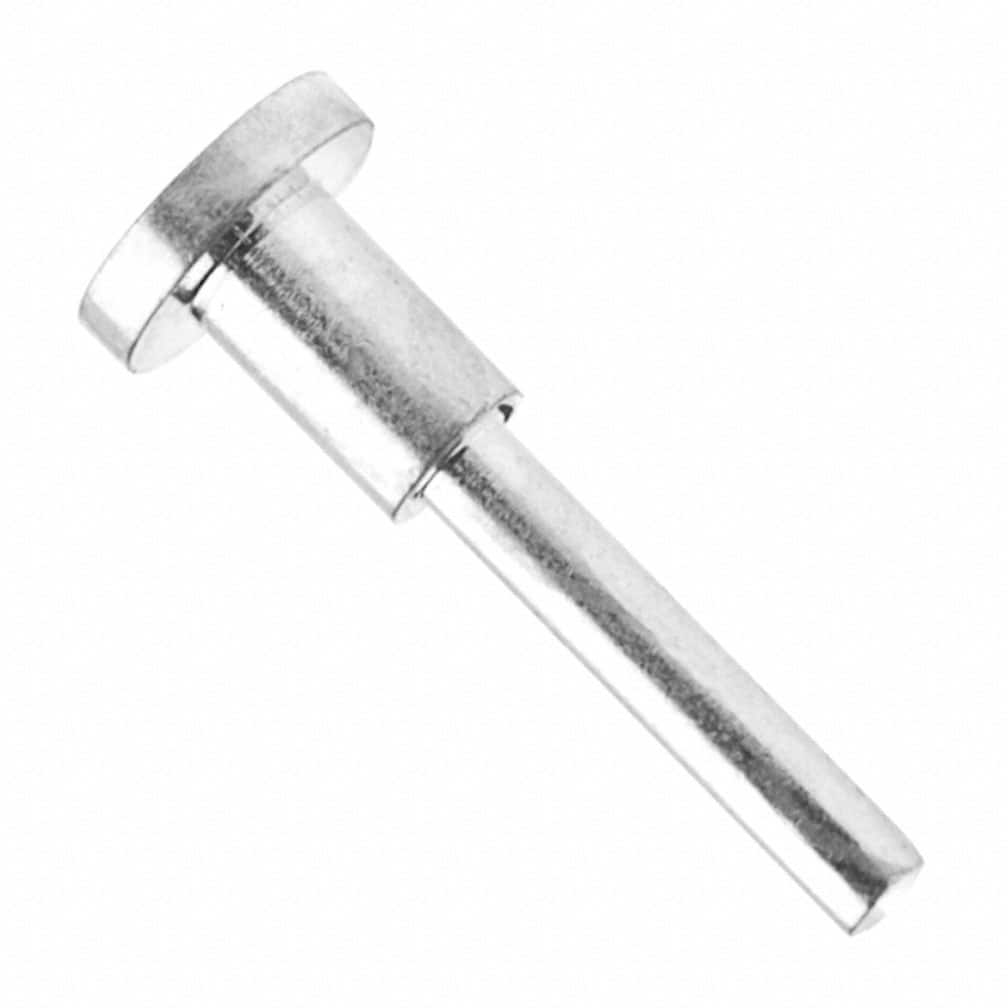

The Harwin H2105B01 is a through hole PC pin designed for single post connector applications. It features a 0.032" (0.81mm) diameter brass contact with a bright tin finish. The swage termination provides additional mechanical retention when inserted into the PCB.
The pin is intended for use with a board thickness of 0.063" (1.60mm) and requires a mounting hole diameter of 0.052" to 0.056" (1.32mm to 1.42mm). The flange diameter is 2.39mm, and the overall length is 6.93mm (with a manufacturer-specified pin length of 4.32mm).
This non-insulated, single end terminal is suitable for general purpose wire-to-board connections, test points, or programming headers. The brass contact material ensures reliable conductivity, while the tin plating offers corrosion resistance and solderability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.32 | $0.32 |
| 100+ | $0.27 | $0.27 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.24 | $0.24 |
| 2,000+ | $0.23 | $0.23 |
| 10,000+ | $0.22 | $0.22 |
| 25,000+ | $0.21 | $0.21 |
| 50,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through Hole
Swage
Tin
Brass
0.032" (0.81mm) Dia
2.39mm
0.063" (1.60mm)
