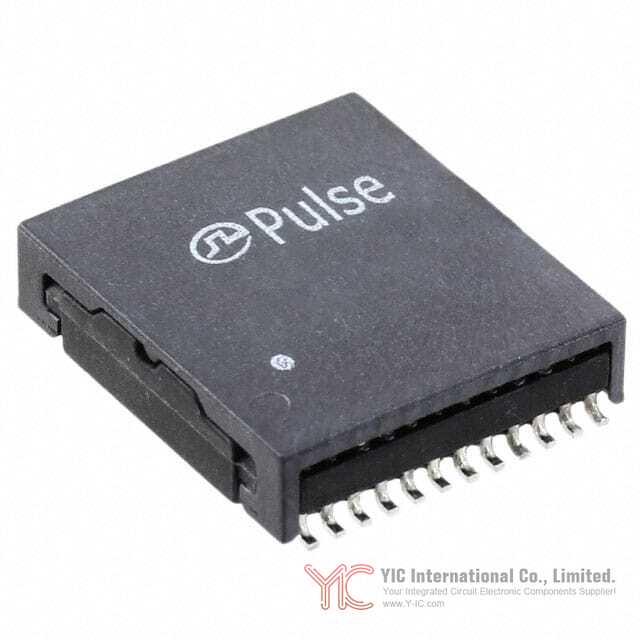

H1267NLT The Pulse Electronics H1267NLT is an isolation and data interface pulse transformer. It features a 1:1 turns ratio and operates within a temperature range of 0°C to 70°C.
Mfr Part #:

H1267NLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics H1267NLT is an isolation and data interface pulse transformer. It features a 1:1 turns ratio and operates within a temperature range of 0°C to 70°C.
✓ Total Stock: 4,200 pcs
$ Price Range: $3.00

H1267NLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
4,200 pcs
On Request
4200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

H1267NLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Operating Temperature
Tape & Reel
Transformer Type
Turns Ratio
Width
View Similar Products (0)

H1267NLT Description

Short technical summary and product information.

The Pulse Electronics H1267NLT is an isolation and data interface pulse transformer designed for various electronic applications. It features a 1:1 turns ratio for both transmitter and receiver sides, indicating a direct signal transfer capability.



This transformer operates within a temperature range of 0°C to 70°C, making it suitable for standard operating environments. The mounting type is surface mount, which is common for modern PCB assembly and allows for automated manufacturing processes.



Key specifications include a height of 5.76mm, length of 17.53mm, and width of 12.20mm. Its encapsulated design provides protection and reliability. The RoHS 3 compliance indicates adherence to environmental regulations regarding hazardous substances.

H1267NLT Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics H1267NLT Isolation and Data Interface Transformer
Subcategory: Pulse Transformer

H1267NLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

H1267NLT Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

H1267NLT Features

  • Isolation and data interface transformer.
  • 1:1 turns ratio for transmitter and receiver.
  • Surface mount for automated assembly.
  • Operates from 0°C to 70°C.
  • RoHS 3 compliant for environmental standards.

H1267NLT Applications

  • Suitable for data communication circuits.
  • Used in signal isolation applications.
  • Ideal for standard operating environments.
  • Component for automated PCB assembly.

H1267NLT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the H1267NLT?

The operating temperature range for the H1267NLT is 0°C to 70°C.

What type of mounting does the H1267NLT use?

The H1267NLT uses surface mount.

What is the turns ratio of the H1267NLT transformer?

The turns ratio is 1CT:1CT for both the transmitter and receiver.

What are the dimensions of the H1267NLT?

The dimensions are 17.53mm in length, 12.20mm in width, and 5.76mm in height.

Is the H1267NLT RoHS compliant?

The H1267NLT is RoHS 3 compliant.

What is the Moisture Sensitivity Level (MSL) for the H1267NLT?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
