| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Failure Rate | |
| Number of Channels | |
| Number of Pins |

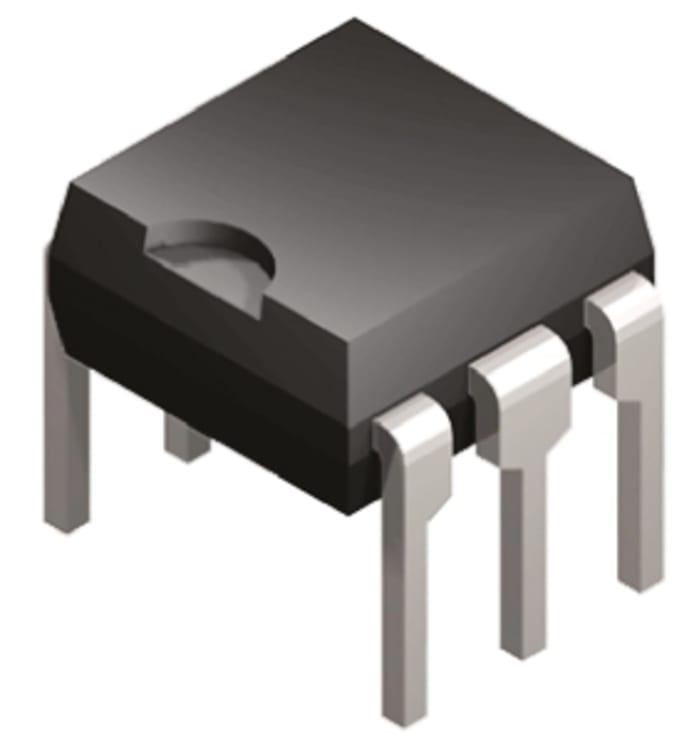

The Isocom H11AV1XG is a transistor output optocoupler designed for through-hole mounting. It features a 6-pin PDIP package and operates with a DC input current.
Key electrical specifications include a maximum forward voltage of 1.5V, a maximum input current of 60mA, and an isolation voltage of 5.3kVrms. The device has a typical rise and fall time of 2µs. It operates across a wide temperature range, from -55°C to 100°C.
The current transfer ratio (CTR) ranges from a minimum of 100% to a maximum of 300%. This optocoupler is approved under UL standards and is manufactured in Thailand.
Designed for applications requiring electrical isolation, the H11AV1XG is suitable for various electronic circuits where signal isolation is critical. Its through-hole package facilitates easy integration onto printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum forward voltage for the H11AV1XG is 1.5V.
The H11AV1XG optocoupler has 1 channel.
The H11AV1XG operates between -55°C and 100°C.
The H11AV1XG comes in a PDIP package.
The isolation voltage of the H11AV1XG is 5.3kVrms.
The minimum current transfer ratio is 100% and the maximum is 300%.
