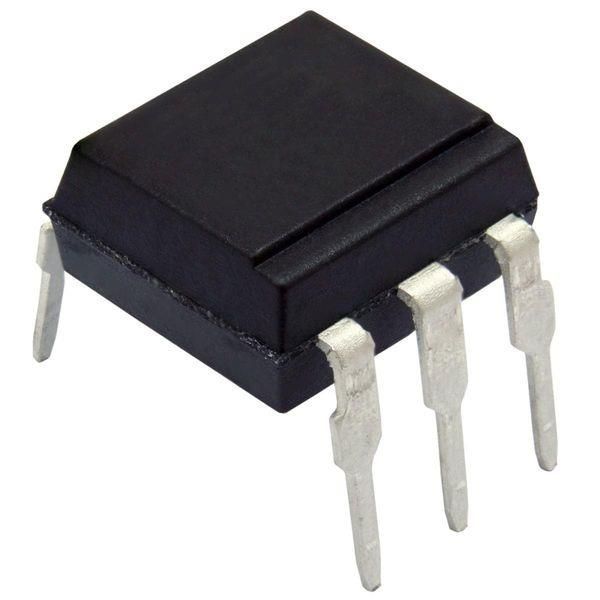

H11AA1 The Vishay H11AA1 is an optocoupler with a phototransistor output, designed for AC input signals. It offers 5300Vrms isolation and comes in a standard DIP-6 package.
Mfr Part #:

H11AA1

Available from 1 distributors
Mfr Name: QTC
QTC
The Vishay H11AA1 is an optocoupler with a phototransistor output, designed for AC input signals. It offers 5300Vrms isolation and comes in a standard DIP-6 package.
✓ Total Stock: 50 pcs
$ Price Range: $1.64

H11AA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

H11AA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Current
Forward Voltage
Height
Length
Mounting Style
Operating Temperature
Power Dissipation
Width
View Similar Products (0)

H11AA1 Description

Short technical summary and product information.

The Vishay H11AA1 is a bi-directional input optically coupled isolator. It features two inverse parallel gallium arsenide infrared LEDs coupled to a silicon NPN phototransistor, housed in a standard 6-pin DIP package.



This optocoupler is designed for applications requiring the detection or monitoring of AC signals. Key electrical specifications include a minimum Current Transfer Ratio (CTR) of 20% and CTR symmetry of 1:3. It supports AC or polarity insensitive input and includes built-in reverse polarity input protection.



With an isolation test voltage of 5300 V RMS, the H11AA1 is suitable for applications demanding high isolation. Its I/O compatibility with integrated circuits makes it versatile for various electronic designs. The device operates within a temperature range of -55°C to +100°C.



Applications for the H11AA1 include telephone line detection, AC line monitoring, PLC interfaces, and instrumentation. It is compliant with RoHS Directive 2002/95/EC and WEEE 2002/96/EC. Agency approvals include UL1577, CSA, BSI, and VDE.

H11AA1 Quick Information

Product Type: Optocoupler
Canonical Name: H11AA1 Optocoupler, Phototransistor Output, AC Input, with Base Connection
Subcategory: Phototransistor Output

H11AA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

H11AA1 Estimated Pricing

Qty Low High
1+ $1.64 $1.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

H11AA1 Features

  • AC or polarity insensitive input.
  • 5300 V RMS isolation test voltage.
  • Phototransistor output.
  • Industry standard DIP package.
  • Compliant to RoHS Directive.

H11AA1 Applications

  • Telephone line detection.
  • AC line monitoring.
  • PLC interfaces.
  • Instrumentation.

H11AA1 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the H11AA1 optocoupler?

The isolation test voltage is 5300 V RMS.

What type of output does the H11AA1 optocoupler have?

The H11AA1 optocoupler has a phototransistor output.

What is the operating temperature range for the H11AA1?

The operating temperature range is -55 C to +100 C.

What package type is the H11AA1 optocoupler supplied in?

The H11AA1 optocoupler is supplied in a DIP-6 package.
