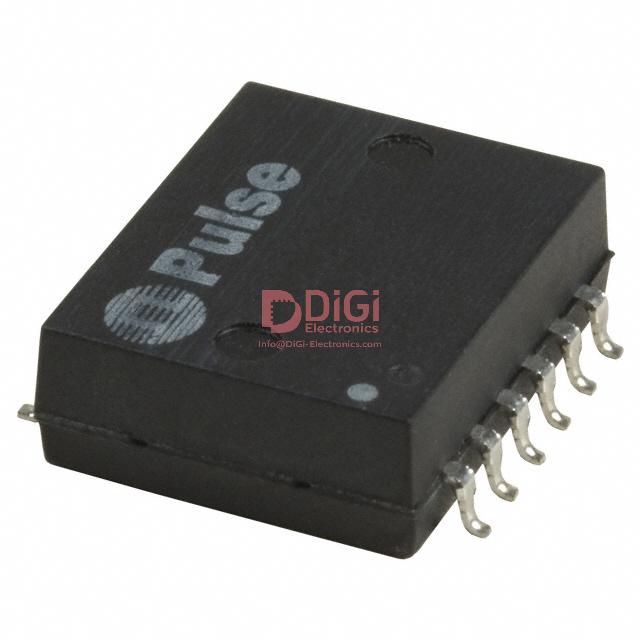

H1112NL The Pulse Electronics H1112NL is a pulse transformer designed for isolation and data interface applications. It features a 1CT:1CT turns ratio and surface mount packaging.
Mfr Part #:

H1112NL

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics H1112NL is a pulse transformer designed for isolation and data interface applications. It features a 1CT:1CT turns ratio and surface mount packaging.
✓ Total Stock: 378 pcs
$ Price Range: $3.00

H1112NL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
378 pcs
On Request
378 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

H1112NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Weight
Width
View Similar Products (0)

H1112NL Description

Short technical summary and product information.

The Pulse Electronics H1112NL is a pulse transformer categorized under Isolation and Data Interface (Encapsulated) applications. It is designed for surface mount installation and features a 1CT:1CT turns ratio.



Key electrical and mechanical specifications include an operating temperature range of 0°C to 70°C. The transformer has dimensions of 14.81mm in length and 11.68mm in width, with a seated height of 5.13mm. Its weight is approximately 1.71g.



This component is suitable for various electronic designs requiring signal isolation and data transmission. The surface mount package facilitates integration into compact PCB layouts.

H1112NL Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics H1112NL Isolation and Data Interface (Encapsulated) Pulse Transformer
Subcategory: Isolation and Data Interface

H1112NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

H1112NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

H1112NL Features

  • Isolation and data interface transformer.
  • 1CT:1CT turns ratio.
  • Surface mountable design.
  • 0°C to 70°C operating temperature.
  • Compact dimensions for PCB integration.

H1112NL Applications

  • Suitable for LAN data transmission interfaces.
  • Used in surface-mount pulse transformer applications.
  • Ideal for isolation in communication equipment.
  • Applicable in Ethernet and networking hardware.
  • Supports high-frequency signal coupling.

H1112NL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the turns ratio of the H1112NL pulse transformer?

The turns ratio is 1CT:1CT.

What is the operating temperature range for the H1112NL?

The operating temperature range is 0°C to 70°C.

How is the H1112NL mounted?

The H1112NL is designed for surface mount installation.

What type of transformer is the H1112NL?

It is an Isolation and Data Interface (Encapsulated) pulse transformer.

What are the dimensions of the H1112NL?

The dimensions are 14.81mm L x 11.68mm W x 5.13mm H.
