Mfr Part #:

H1102FNLT

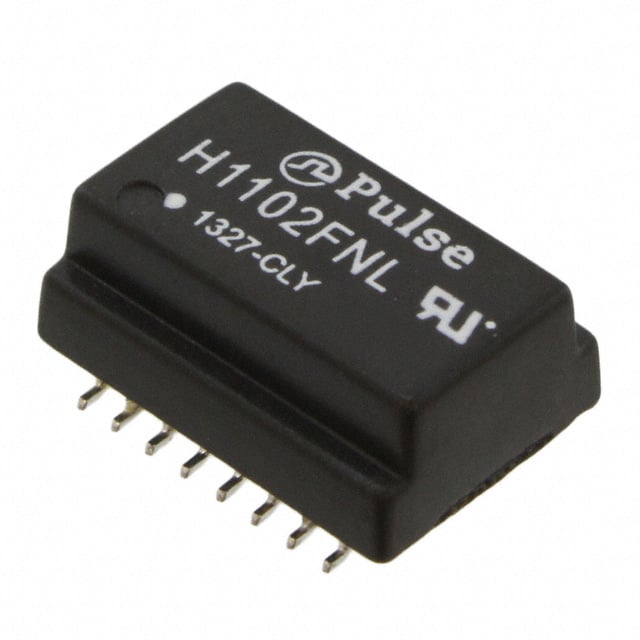

The Pulse Electronics H1102FNLT is a LAN 10G Base-T transformer with 350µH inductance. It features a surface mount package and an operating temperature range of 0°C to 70°C.

✓ Total Stock: 11,054 pcs

$ Price Range: $3.00

H1102FNLT Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	5,755 pcs On Request	5755 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	4,188 pcs On Request	4188 pcs	On Request	1	On Request	On Request	1638+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	1,100 pcs On Request	1100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	11 pcs On Request	11 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

H1102FNLT Description

Short technical summary and product information.

The Pulse Electronics H1102FNLT is a pulse transformer designed for LAN 10G Base-T applications. It offers an inductance value of 350µH and operates within a temperature range of 0°C to 70°C.

This transformer features a surface mount package, making it suitable for modern PCB assembly processes. The dimensions are 12.70mm in length and 9.09mm in width, with a seated height of 5.99mm. The turns ratio is specified as 1CT:1CT for both the transmitter and receiver sides.

Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The H1102FNLT is part of the Pulse Transformer family from Pulse Electronics.

H1102FNLT Quick Information

Product Type: Transformer

Canonical Name: H1102FNLT Pulse LAN 10G Base-T Transformer

Subcategory: Pulse Transformer

H1102FNLT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

H1102FNLT Estimated Pricing

Qty	Low	High
1+	$3.00	$3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

H1102FNLT Features

LAN 10G Base-T transformer
350µH inductance
0°C to 70°C operating temperature
Surface mount package
1CT:1CT turns ratio

H1102FNLT Applications

Suitable for LAN 10G Base-T network transformers.
Used in high-speed data communication systems.
Ideal for surface-mount transformer applications.
Applicable in Ethernet and networking equipment.
Supports impedance matching in digital communication.

H1102FNLT FAQs

5 frequently asked questions generated from this part’s specifications.

What is the inductance of the H1102FNLT transformer?

The inductance of the H1102FNLT transformer is 350µH.

What is the operating temperature range for the H1102FNLT?

The H1102FNLT is designed to operate within a temperature range of 0°C to 70°C.

What type of transformer is the H1102FNLT?

The H1102FNLT is a LAN 10G Base-T transformer.

What is the mounting type for the H1102FNLT?

The H1102FNLT has a surface mount type.

What is the turns ratio of the H1102FNLT?

The turns ratio for the H1102FNLT is 1CT:1CT Transmitter and 1CT:1CT Receiver.

Category	Pulse Transformers
Manufacturer Name	Pulse Electronics
Height	5.99mm (0.236")
Inductance	350µH
Length	12.70mm (0.500")
Mounting Type	Surface Mount
Operating Temperature	0°C ~ 70°C
Tape & Reel	No
Transformer Type	LAN 10G Base-T
Turns Ratio	1CT:1CT Transmitter, 1CT:1CT Receiver
Width	9.09mm (0.358")
