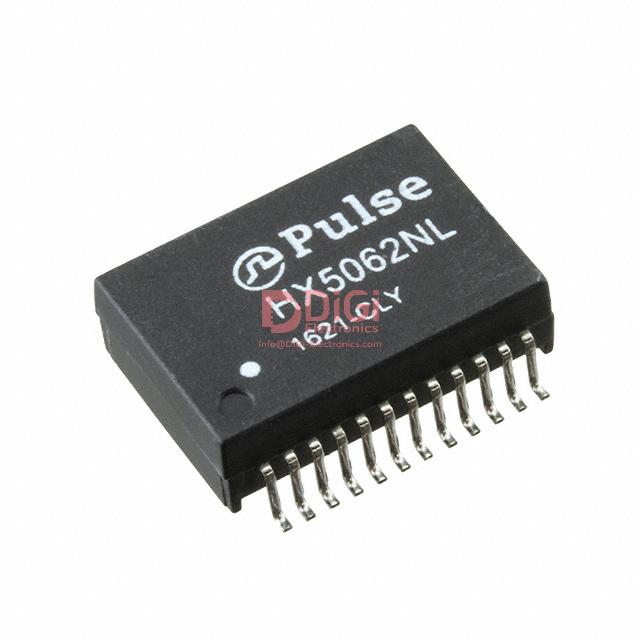

The Pulse Electronics HX5062NLT is a surface mount pulse transformer specifically designed for 10/100/1000 Base-T LAN applications. It offers a precise 1CT:1CT turns ratio for both transmitter and receiver functions.
Key electrical specifications include an inductance of 350µH, making it suitable for reliable data transmission in networking equipment. The transformer operates within a temperature range of -40°C to 85°C, ensuring performance in various environmental conditions.
With its compact dimensions of 17.50mm x 12.20mm and a maximum seated height of 5.72mm, the HX5062NLT is designed for efficient integration into densely populated printed circuit boards. The surface mount packaging facilitates automated assembly processes.
This pulse transformer is suitable for applications requiring robust signal integrity and impedance matching in Ethernet and other high-speed data communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the HX5062NLT is 350µH.
The HX5062NLT supports LAN 10/100/1000 Base-T.
The turns ratio is 1CT:1CT for both transmitter and receiver.
The HX5062NLT operates from -40°C to 85°C.
The dimensions are 17.50mm in length and 12.20mm in width.
The mounting type is Surface Mount.
The HX5062NLT is packaged in Tape & Reel (TR).
