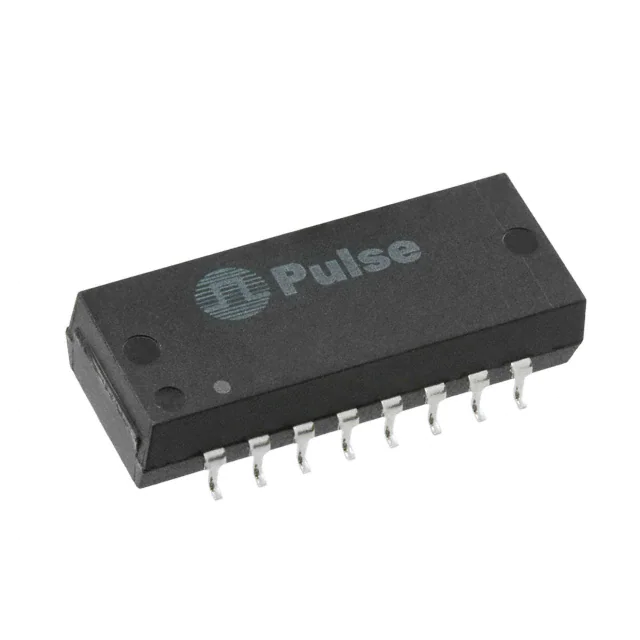

H1012NL The Pulse Electronics Network H1012NL is a pulse transformer designed for isolation and data interface applications. It features a 1CT:1CT turns ratio and surface mount packaging.
Mfr Part #:

H1012NL

Available from 2 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics Network H1012NL is a pulse transformer designed for isolation and data interface applications. It features a 1CT:1CT turns ratio and surface mount packaging.
✓ Total Stock: 61 pcs
$ Price Range: $3.00

H1012NL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

H1012NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Height
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Weight
Width
View Similar Products (0)

H1012NL Description

Short technical summary and product information.

The Pulse Electronics Network H1012NL is a pulse transformer suitable for isolation and data interface applications. It is encapsulated and features a 1CT:1CT turns ratio.



This transformer has a surface mount design with dimensions of 1.000" L x 0.390" W (25.40mm x 9.91mm) and a seated height of 0.245" (6.22mm). The operating temperature range is 0°C to 70°C.



Environmental compliance includes RoHS3 compliance and an MSL rating of 1 Unlimited. The part is REACH Unaffected. The standard package quantity is 20 units.

H1012NL Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Transformer H1012NL
Subcategory: Pulse Transformer

H1012NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

H1012NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

H1012NL Features

  • Isolation and data interface transformer.
  • 1CT:1CT turns ratio.
  • Surface mountable design.
  • 0°C to 70°C operating temperature range.
  • Standard package quantity of 20.

H1012NL Applications

  • Suitable for isolation in data interface circuits.
  • Used in surface-mount transformer applications.
  • Ideal for power management and communication modules.
  • Applicable in high-frequency signal transmission.
  • Supports RoHS-compliant electronic designs.

H1012NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the turns ratio of the H1012NL transformer?

The turns ratio is 1CT:1CT.

What type of transformer is the H1012NL?

It is an Isolation and Data Interface (Encapsulated) transformer.

What is the mounting type for the H1012NL?

The mounting type is Surface Mount.

What are the dimensions of the H1012NL transformer?

The dimensions are 1.000" L x 0.390" W (25.40mm x 9.91mm).

What is the operating temperature range for the H1012NL?

The operating temperature range is 0°C to 70°C.

How many units are in the standard package for the H1012NL?

The standard package quantity is 20.
