| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

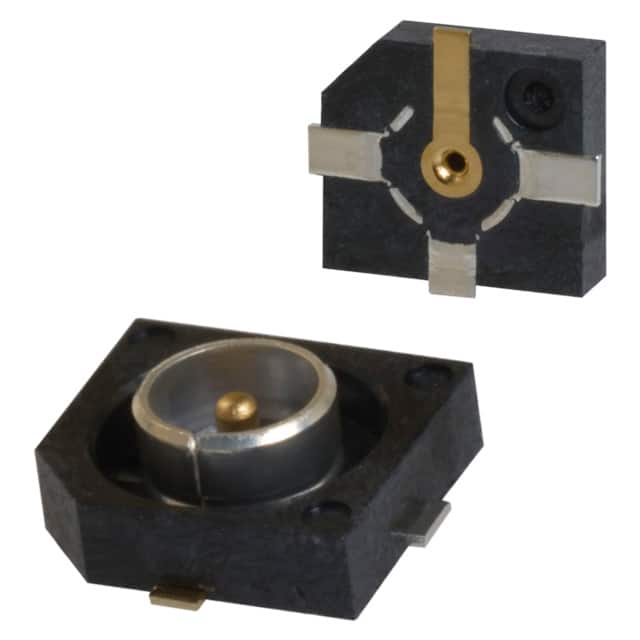

The H.FL-R-SMT(01) is a coaxial connector from Hirose Electric's H.FL series. It is a receptacle with a male pin center contact made of brass, designed for surface mount soldering. The connector offers a characteristic impedance of 50 Ohms and supports frequencies up to 3 GHz.
This connector uses a snap-on fastening mechanism for quick and secure mating. The housing is black and the shield termination is also solder type. It is a single-port device suitable for RF applications requiring a compact, low-profile interconnect.
The surface mount design enables automated assembly, making it suitable for high-volume production. The H.FL series is commonly used in wireless communication modules, GPS receivers, and other portable electronic devices where space is limited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
| 10+ | $2.06 | $2.06 |
| 25+ | $1.84 | $1.84 |
| 100+ | $1.74 | $1.74 |
| 300+ | $1.61 | $1.61 |
| 500+ | $1.55 | $1.55 |
| 1,000+ | $1.46 | $1.46 |
| 2,500+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 50 Ohms.
The maximum frequency is 3 GHz.
It uses surface mount mounting.
The connector style is H.FL and the type is receptacle with male pin.
It uses a snap-on fastening type.
