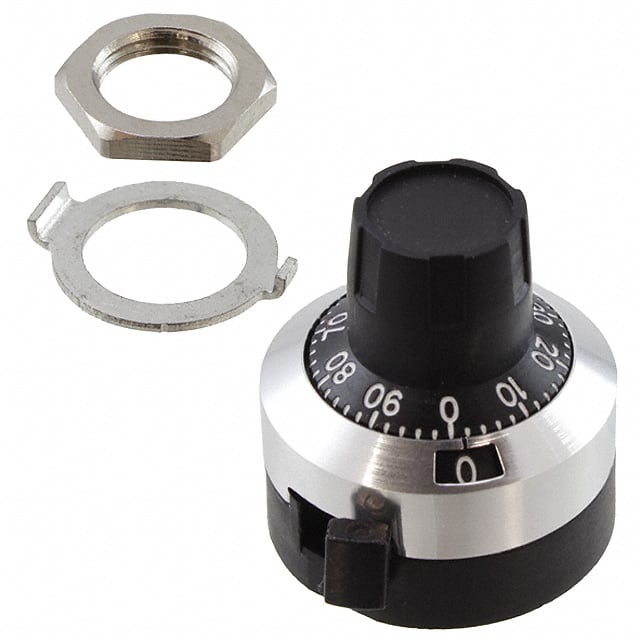

The Bourns H-516-6A is a compact turns-counting dial requiring only 22.8 mm of panel space. It is designed for use with precision potentiometers or other rotating devices that require up to 15 turns. The dial features 50 divisions per turn, providing high readability, with 2 parts in 1000 over 10 turns.
Mechanical specifications include a locking brake with a minimum torque of 5.0 N-cm (7.0 oz-in.). The markings are white on a black background for clear visibility. The dial weighs 7 grams and includes two slotted 4-40UN screws. It is designed for plastic shafts and requires a shaft extension of at least 17.5 mm beyond the panel.
Environmental characteristics include a Moisture Sensitivity Level of 1. The RoHS status is compliant, and REACH status is unaffected. This dial is suitable for applications requiring precise rotational control and indication.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns H-516-6A dial supports 0 to 15 turns.
The H-516-6A dial has 50 divisions per turn.
The readability of the H-516-6A dial over 10 turns is 2 parts in 1000.
The torque with the brake engaged on the H-516-6A dial is a minimum of 5.0 N-cm (7.0 oz-in.).
Yes, the H-516-6A dial features a locking brake.
The H-516-6A dial is designed for a 1/4 inch (6.35mm) shaft diameter.
The outside diameter of the H-516-6A dial is 23 mm.
