| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

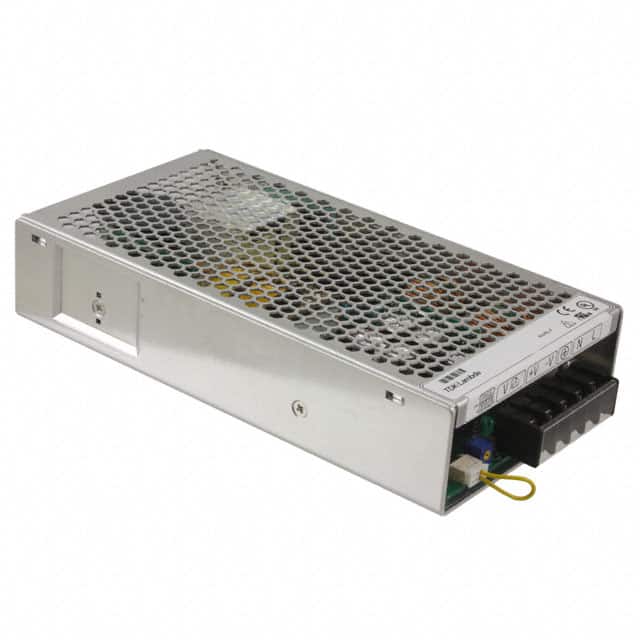

The GWS250-36 is a 250W AC/DC converter from TDK Corporation providing a regulated 36V output. It accepts a wide universal AC input of 85-264VAC (47-63Hz) or DC input of 120-373VDC, making it suitable for global applications. The converter achieves a typical power factor of 0.98/0.95 and meets EN 61000-3-2 harmonic standards.
Protection features include overcurrent protection (>105% rated output power), overvoltage protection (41.4-48.6V for the 36V model), and overtemperature protection. The unit offers an active low remote on/off control and a DC OK open collector monitoring signal. Hold-up time is 16ms at full load, and standby power consumption is less than 0.5W.
The operating temperature range is -25°C to 70°C with derating, and storage temperature is -30°C to +85°C. The converter includes an auxiliary 5V/0.3A supply and supports output remote programming. It is designed for reliable operation in industrial, telecom, and test equipment environments.
85-264 VAC or 120-373 VDC.
-25°C to 70°C with derating.
Overcurrent protection (>105% rated output power), overvoltage protection (41.4-48.6V for 36V model), and overtemperature protection.
Yes, active low remote on/off control.
16ms at full load.
