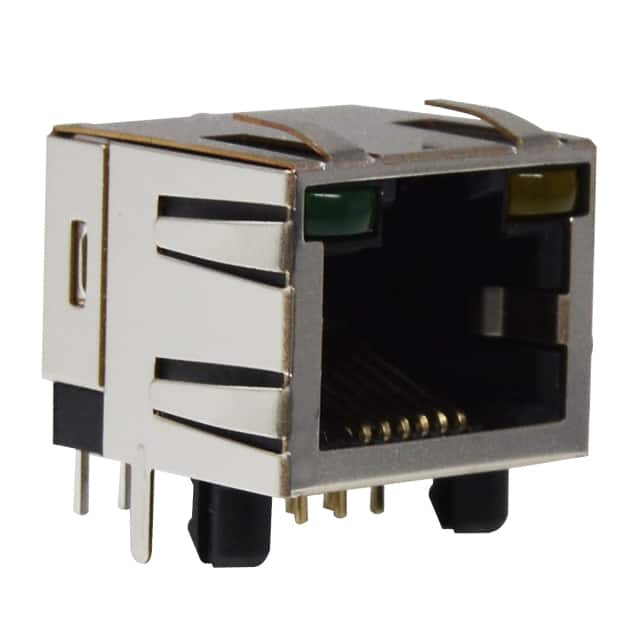

GWLX-S9-88-G/Y-50 Shielded RJ45 modular jack from Kycon Inc. with 8p8c (8 position 8 contact) configuration, 1 port, right angle through hole mounting, and gold plated contacts.
Mfr Part #:

GWLX-S9-88-G/Y-50

Available from 1 distributors
Mfr Name: Kycon Inc.
Kycon Inc.
Shielded RJ45 modular jack from Kycon Inc. with 8p8c (8 position 8 contact) configuration, 1 port, right angle through hole mounting, and gold plated contacts.
✓ Total Stock: 824 pcs

GWLX-S9-88-G/Y-50 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
824 pcs
On Request
824 pcs On Request 1 On Request On Request 0601+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GWLX-S9-88-G/Y-50 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

GWLX-S9-88-G/Y-50 Description

Short technical summary and product information.

The Kycon GWLX-S9-88-G/Y-50 is a shielded modular connector jack designed for RJ45 Ethernet applications. It features an 8p8c (8 position 8 contact) configuration with a single port, making it suitable for standard networking interfaces. The jack is shielded with an EMI finger to reduce electromagnetic interference, and includes a board lock for secure attachment to the PCB.



This connector is mounted via through hole technology with a right angle (90°) orientation, allowing for low-profile edge mounting. The termination is solder type, and the tab direction is up. The contacts are made of phosphor bronze with a gold finish, ensuring reliable conductivity and corrosion resistance. The jack also includes integrated Green and Yellow LED indicators for status signaling.



Designed for use in a variety of networking and telecommunications equipment, this modular jack provides a robust and reliable connection. The shielded design and board lock feature enhance mechanical stability and signal integrity in demanding environments.

GWLX-S9-88-G/Y-50 Quick Information

Product Type: Modular Connector Jack
Series: GWLX
Canonical Name: Kycon Inc. GWLX-S9-88-G/Y-50 Shielded RJ45 Modular Jack, 8p8c, 1 Port, Through Hole, Right Angle
Subcategory: RJ45 Jack

GWLX-S9-88-G/Y-50 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GWLX-S9-88-G/Y-50 Features

  • Shielded with EMI finger for EMI protection.
  • 8p8c (RJ45) connector configuration.
  • Through hole mounting with right angle orientation.
  • Gold plated phosphor bronze contacts.
  • Integrated Green/Yellow LED indicators.

GWLX-S9-88-G/Y-50 Applications

  • Ideal for Ethernet network interface cards.
  • Used in routers and switches.
  • Suitable for telecommunications equipment.
  • Board lock for secure PCB mounting.
  • Right angle design for low profile applications.

GWLX-S9-88-G/Y-50 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector configuration?

8p8c (RJ45, Ethernet).

What is the mounting type?

Through Hole.

Is this jack shielded?

Yes, shielded with EMI finger.

What are the LED colors?

Green - Yellow.

What is the orientation?

90° Angle (Right).

What contact material and finish?

Phosphor Bronze contacts with Gold finish.

Does it have a board lock?

Yes, includes board lock feature.
