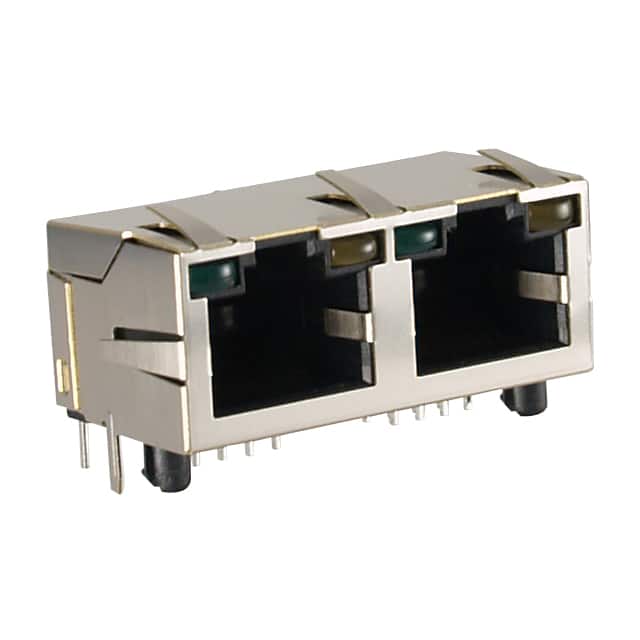

GWLGX-S1288-G/Y Kycon GWLGX-S1288-G/Y is a 2-port 8P8C (RJ45) modular jack with right-angle orientation and through-hole mounting. It features fully shielded construction with EMI fingers and green/yellow LED indicators.
Mfr Part #:

GWLGX-S1288-G/Y

Available from 1 distributors
Mfr Name: Kycon Inc.
Kycon Inc.
Kycon GWLGX-S1288-G/Y is a 2-port 8P8C (RJ45) modular jack with right-angle orientation and through-hole mounting. It features fully shielded construction with EMI fingers and green/yellow LED indicators.
✓ Total Stock: 804 pcs

GWLGX-S1288-G/Y Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
804 pcs
On Request
804 pcs On Request 1 On Request On Request 09+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GWLGX-S1288-G/Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Resistance
Current Rating
Features
Housing Material
Insulation Resistance
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Termination
Voltage Rating
View Similar Products (0)

GWLGX-S1288-G/Y Description

Short technical summary and product information.

Kycon GWLGX-S1288-G/Y is a modular jack from the GWLGX series, designed for 2-port 8P8C connectors commonly used in Ethernet applications. The right-angle orientation and through-hole solder termination facilitate compact PCB layouts.



Electrical specifications include a current rating of 1.5A, voltage rating of 125V DC, minimum insulation resistance of 500 MΩ, and maximum contact resistance of 20 mΩ. The operating temperature range is -40°C to +85°C, ensuring reliable performance in varied environments.



Mechanical features include a fully shielded design with EMI fingers for electromagnetic interference protection, a board lock for secure mounting, and a tab-up orientation. The housing is made of thermoplastic rated UL 94V-0, contacts are phosphor bronze with gold plating, and the shield is copper alloy with nickel plating.



The jack includes green and yellow LED indicators for status display. Durability is rated at 500 mating cycles minimum. The product is RoHS3 and REACH compliant, with a CSA/NRTL certification file number LR78160.

GWLGX-S1288-G/Y Quick Information

Product Type: Modular Connector Jack
Series: GWLGX
Canonical Name: GWLGX-S1288-G/Y Modular Connector Jack, 2 Port, 8P8C, Right Angle, Through Hole, Shielded
Subcategory: Modular Connector Jacks

GWLGX-S1288-G/Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GWLGX-S1288-G/Y Features

  • Right-angle 2-port 8P8C modular jack.
  • Shielded with EMI finger for interference protection.
  • Green and yellow LED status indicators.
  • Through-hole solder termination with board lock.
  • Rated for 1.5A and 125V DC operation.

GWLGX-S1288-G/Y Applications

  • Ideal for Ethernet network interface connections.
  • Used in industrial control and automation equipment.
  • Suitable for telecommunications and data communication systems.
  • Common in computer networking and peripheral devices.

GWLGX-S1288-G/Y FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and number of positions?

This is a modular jack with 8 positions and 8 contacts (8P8C), commonly used for RJ45 Ethernet connections.

What are the current and voltage ratings?

The current rating is 1.5A and the voltage rating is 125V DC.

What is the mounting type and orientation?

This jack is through-hole mounted with a 90° right-angle orientation and tab up direction.

Is the connector shielded?

Yes, it is fully shielded and includes an EMI finger for electromagnetic interference protection.

What LED colors are available?

The jack has green LED on the left and yellow LED on the right.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Is this product RoHS compliant?

Yes, it is RoHS3 compliant and also REACH unaffected.
