| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | 922 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| CCT (K) | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Lens Type | |
| Lumens | |
| Luminous Flux @ Current | |
| Model No. | |
| Mounting Type | |
| Product Name | |
| Temperature | |
| Type | |
| Voltage |

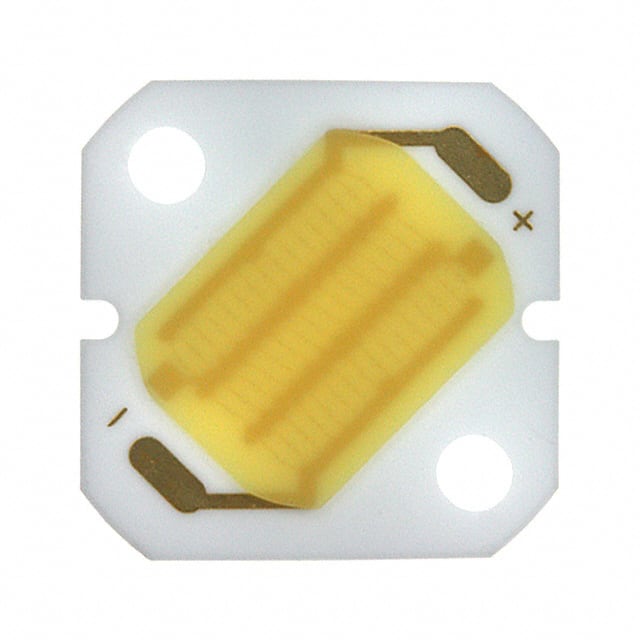

This specification applies to the light emitting diode module Model No. GW5BNF15L10 from Sharp Microelectronics. This white LED module utilizes an InGaN Blue LED chip combined with phosphor for illumination purposes.
Key electrical characteristics include an operating voltage of 10.2V and a current rating of 640mA, producing a typical luminous flux of 350lm. The module has a correlated color temperature (CCT) of 6500K, providing a cool white light. Its efficacy is rated at 54 lm/W.
Mechanically, the module has dimensions of 18.00mm in length and 18.00mm in width, with a height of 2.00mm. It features a flat lens type and a square configuration. The product is designed for use in various applications such as OA equipment, audio-visual equipment, home appliances, telecommunication equipment (terminal), measuring equipment, tooling machines, and computers.
Precautions are outlined for applications demanding high reliability and safety, such as transportation control and safety equipment, traffic signals, and rescue equipment. It is not recommended for use in equipment requiring extremely high reliability and safety, like space equipment, nuclear power control, or medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 10.2V.
The typical luminous flux is 350 lm.
The color temperature is 6500K.
The dimensions are 18.00mm L x 18.00mm W.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
