| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Footprint | |
| Interface | |
| Mounting Type | |
| Operating Voltage | |
| Power Consumption | |
| Tape & Reel | |
| Voltage |
The Gennum GV7600-IBE3, also known as the Aviia Transmitter, is a serial digital video transmitter capable of handling standard and high-definition component video signals. It supports a wide range of video standards, including SD 525i and 625i, and HD formats such as 720p, 1080i, and 1080p at various frame rates. The device supports 8-bit, 10-bit, or 12-bit component digital video input, with options for RGB or YCbCr 4:4:4, YCbCr 4:2:2, or YCbCr 4:2:0 sampling.
Key features include an integrated audio embedder for up to 8 channels of 48kHz digital audio, an Asynchronous Serial Interface (ASI) for transport streams, and ancillary data insertion capabilities. It operates with a 1.2V core voltage and 3.3V analog voltage, with selectable 1.8V or 3.3V digital I/O power. The GV7600-IBE3 is housed in a compact 100-BGA package measuring 11mm x 11mm and consumes low power, typically 400mW.
This transmitter is suitable for applications such as industrial and professional cameras, digital video recorders (DVRs), video servers, video mixers, switchers, and camcorders. It provides a complete transmit solution for coaxial cable-based video systems, enabling high-speed serial digital video transmission up to 1920 x 1080 resolution.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GV7600-IBE3 supports SD 525i and 625i, and HD 720p, 1080i, and 1080p at various frame rates.
It supports 8-bit, 10-bit, or 12-bit component digital video, with RGB or YCbCr 4:4:4 sampling, and YCbCr 4:2:2 or 4:2:0 sampling.
The device can embed up to 8 channels of 48kHz digital audio.
The core voltage is 1.2V and the analog voltage is 3.3V.

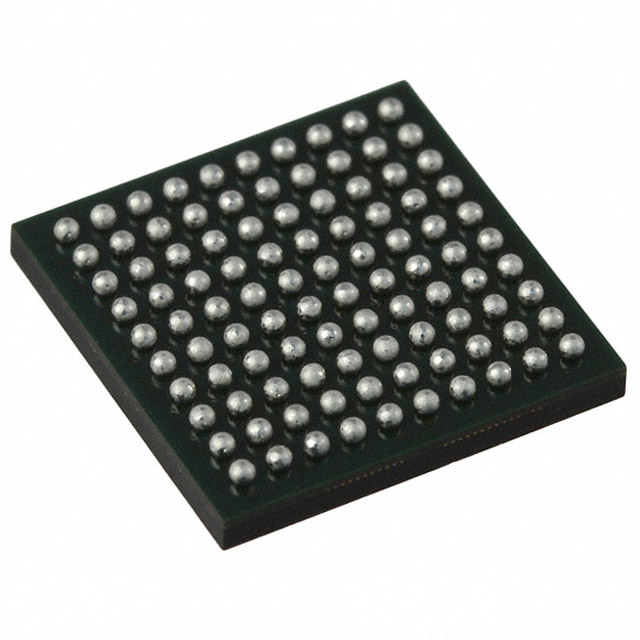

The GV7600-IBE3 is in a 100-LBGA package with a footprint of 11mm x 11mm.
The typical power consumption is 400mW.
