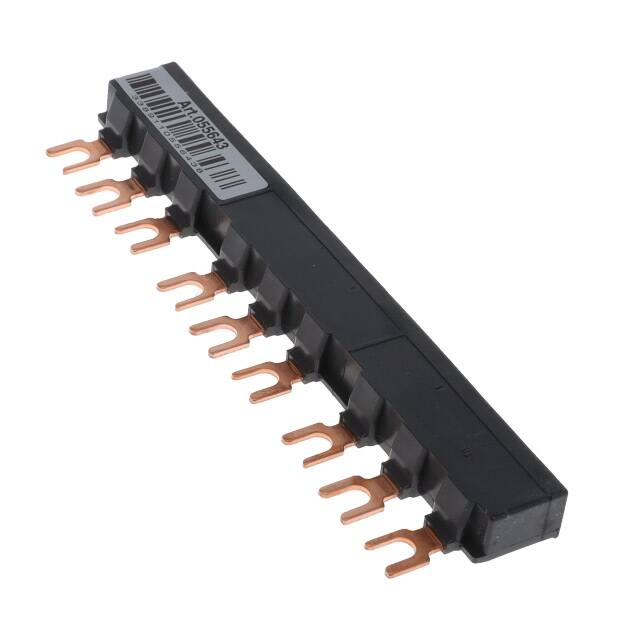

The GV2G345 is a Tesys busbar set designed for motor circuit protection applications. It has a conventional free air thermal current rating of 63 A and a rated insulation voltage of 690 V. The busbar set is configured with 3 poles and 3 tap-offs, providing flexible power distribution. The connection pitch is 45 mm, and the overall length is 134 mm. The net weight is 0.058 kg.
The busbar set is packaged individually (PCE) with dimensions 13.5 cm x 3.5 cm x 1 cm and a weight of 58 g. It is RoHS compliant and contains SVHC substances as declared. The moisture sensitivity level is MSL 1.
This busbar set is suitable for use with Schneider Electric Tesys motor starters and contactors in industrial control panels. Its compact design and standardized pitch facilitate easy installation and wiring in motor control centers.
690 V.
Packaged as PCE (piece) with dimensions 13.5 cm x 3.5 cm x 1 cm and weight 58 g.
Yes, it is RoHS compliant.
3 poles.
3 tap-offs.
45 mm.
0.058 kg.
