| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Current Rating | |
| For Use With | |
| Mounting Type | |
| Termination Style | |
| Voltage Rating |

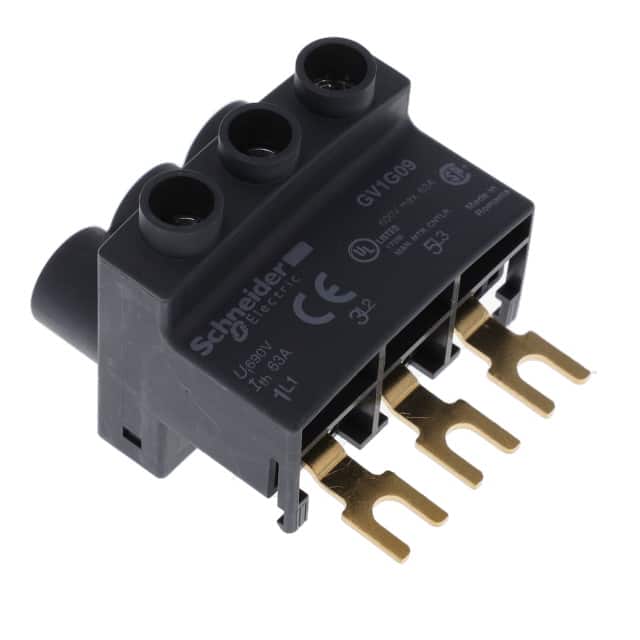

The Schneider Electric GV1G09 is a Linergy Tesys Terminal Block, part of the GV1G series. This accessory is designed for use with PowerPact Manual Starters.
Key electrical specifications include a current rating of 63 A and a voltage rating of 690 V AC. It features an IP20 ingress protection rating, ensuring protection against solid objects greater than 12.5mm. The connection style is screw clamp, suitable for wire sizes ranging from 1.5 to 6 mm2 (18 to 10 AWG). The recommended torque for connections is 1.7 N.m or 15 lb-in.
This terminal block is suitable for panel mounting and offers a robust solution for electrical connections in industrial control systems. Its design facilitates simple wiring and installation, contributing to a modern look and feel in equipment.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. While these are reported, they are currently unverified.
The Schneider Electric GV1G09 terminal block has a current rating of 63 A.
The GV1G09 terminal block is rated for 690 V AC.
The GV1G09 terminal block has an IP20 ingress protection rating.
The GV1G09 terminal block uses a screw clamp connection.
The GV1G09 terminal block is compatible with wire sizes from 1.5 to 6 mm2 (18 to 10 AWG).
The recommended torque for the GV1G09 terminal block connections is 1.7 N.m or 15 lb-in.
The GV1G09 terminal block is reported as RoHS3 Compliant.
