| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

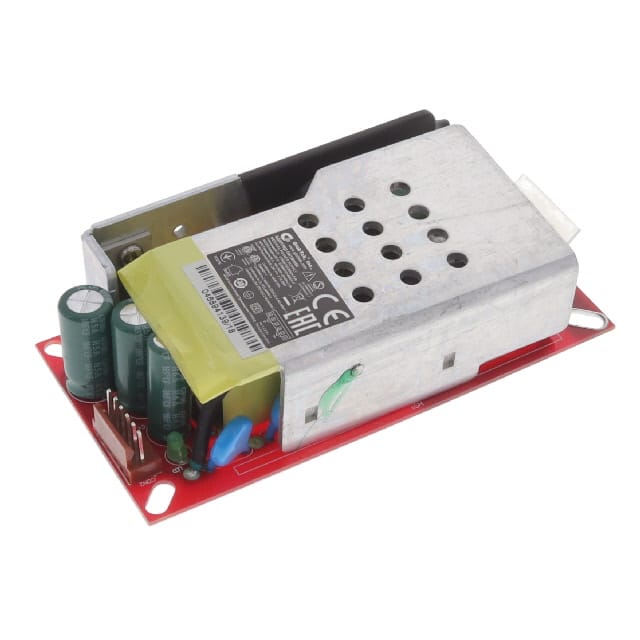

The GlobTek GTM96700-B6524-F(R) is an AC/DC converter designed for various applications, including medical equipment. It delivers 65W of power with a 2.7A output current and operates with a universal input.
This converter features an open frame construction and is designed for chassis mounting, making it suitable for integration into larger systems. Its dimensions are 101.6mm x 50.8mm x 25.5mm. The device boasts an efficiency of 89% and operates within a temperature range of -10°C to 50°C.
Key specifications include a 4kV voltage rating and compliance with multiple agency standards such as CB, CE, EAC, ETL, S-Mark, UkrSEPRO, and VCCI. It also adheres to safety standards including 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
24V DC.
-10°C to 50°C.
Chassis mount.
89%.
4 kV.
1.
65W.
