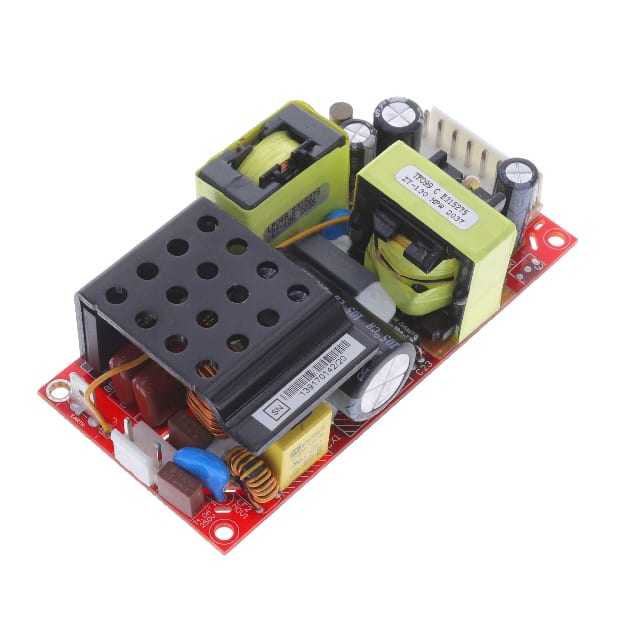

This AC DC Converter from GlobTek, Inc., part number GTM962250P22548A-F, is designed for efficient power conversion. It operates with a universal input and provides a 225W output power.
The converter features an open frame construction and chassis mount type, making it suitable for integration into various systems. Key electrical specifications include a current rating of 4.69A and an output voltage of 48V. The device operates within a temperature range of -25°C to 80°C with derating.
Designed for reliability, it boasts an efficiency of 95% and meets several standard numbers including 60335-1, 60601-1, 60950-1, and 62368-1. Approval agencies include CB, CE, cETLus, EAC, UkrSEPRO, and VCCI, indicating broad compliance for applications in household appliances, ITE (Commercial), and medical fields.
Mechanical dimensions are 101.6mm in length, 50.8mm in width, and 30.0mm in height. The unit has a single output and an isolation voltage of 4 kV.
The output is 48V at 4.69A, providing 225W.
The efficiency is 95%.
The isolation voltage is 4 kV.
The operating temperature range is -25°C to 80°C with derating.
The dimensions are 101.6mm x 50.8mm x 30.0mm (4.00" x 2.00" x 1.18").
It is approved by CB, CE, cETLus, EAC, UkrSEPRO, and VCCI.
The mounting type is chassis mount.
