| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

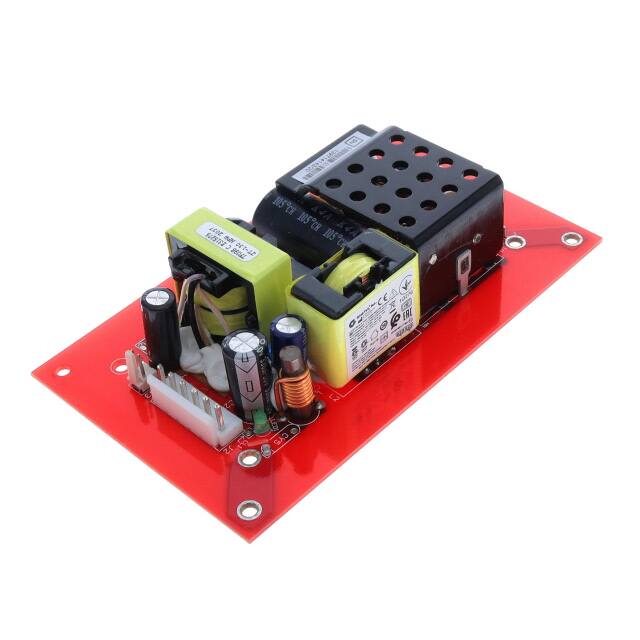

This GlobTek GTM962250P22536A-CF is an open frame AC/DC power supply converter designed for chassis mounting. It provides a 36V output with a maximum current of 6.25A, delivering up to 225W of power. The converter features universal input and achieves high efficiency of 95%.
With dimensions of 127.0mm x 76.2mm x 30.0mm, it is suitable for applications requiring compact power solutions. The operating temperature range is -25°C to 80°C with derating. It is approved by multiple agencies including CB, CE, cETLus, EAC, UkrSEPRO, and VCCI, and complies with standards such as 60335-1, 60601-1, 60950-1, and 62368-1.
Applications include household appliances, ITE (Commercial), and medical equipment. The unit offers 4 kV isolation voltage and features universal input capability.
The output voltage is 36V and the output current is 6.25 A.
The efficiency is 95%.
The operating temperature range is -25°C to 80°C with derating.
It uses chassis mount mounting.
The dimensions are 127.0mm length, 76.2mm width, and 30.0mm height.
It complies with standards 60335-1, 60601-1, 60950-1, and 62368-1.
The voltage isolation rating is 4 kV.
