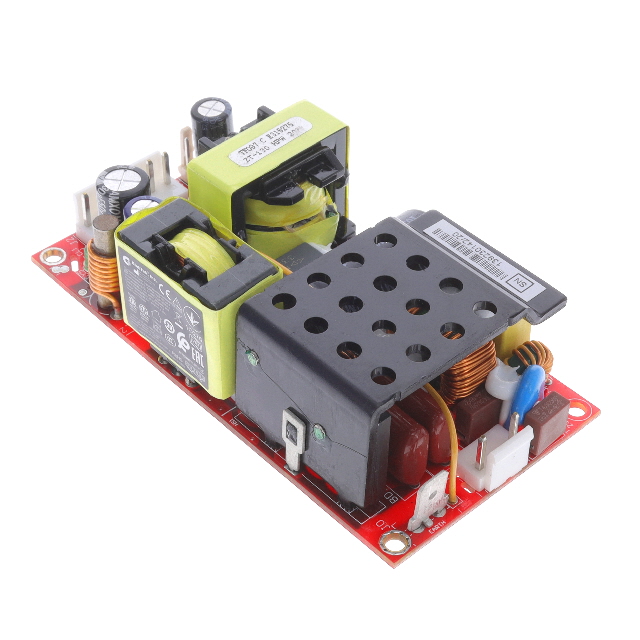

This GlobTek, Inc. GTM962250P22530A-F is an open frame AC/DC converter designed for various applications including household appliances, ITE (Commercial), and Medical. It provides a single output of 30V at 7.5A, delivering a total power of 225W.
The converter operates with a universal input voltage range of 85 to 264 VAC and boasts a high efficiency of 95%. Its compact dimensions are 101.6mm x 50.8mm x 30.0mm, making it suitable for chassis mounting.
Key electrical specifications include 4kV isolation voltage and compliance with standards such as 60335-1, 60601-1, 60950-1, and 62368-1. The operating temperature range is -25°C to 80°C with derating.
The output voltage is 30V.
The maximum output current is 7.5 A.
The power rating is 225W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -25°C to 80°C (With Derating).
The dimensions are 101.6mm L x 50.8mm W x 30.0mm H.
It complies with 60335-1, 60601-1, 60950-1, and 62368-1.
