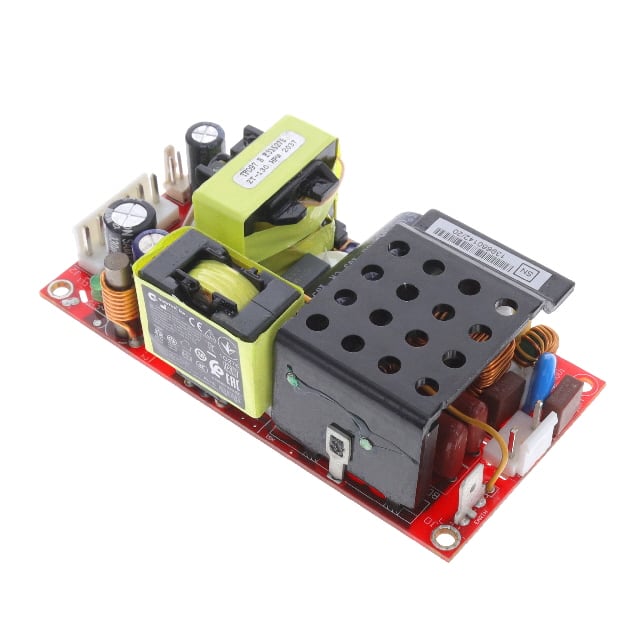

The GlobTek GTM962250P22528A-F is an open frame AC/DC power supply converter designed for chassis mounting. It provides a 28V output voltage and a continuous power output of 140W, capable of reaching 225W with forced air cooling.
This converter boasts a high efficiency of 95% and an isolation voltage of 4 kV. It is suitable for applications in household appliances, ITE (Commercial), and medical equipment. The operating temperature range is -25°C to 80°C with derating.
Compliance is certified by multiple agencies including CB, CE, cETLus, EAC, UkrSEPRO, and VCCI, adhering to standards such as 60335-1, 60601-1, 60950-1, and 62368-1. The unit is RoHS3 compliant and has an MSL of 1.
With dimensions of 101.6mm x 50.8mm x 30.0mm, this converter offers a compact solution for power conversion needs in various demanding environments.
The output voltage is 4 kV.
The continuous power output is 140W, and it can reach 225W with forced air cooling.
The operating temperature range is -25°C to 80°C, with derating applied.
The dimensions are 101.6mm x 50.8mm x 30.0mm.
Yes, it is RoHS3 compliant.
The Moisture Sensitivity Level is 1 Unlimited.
