| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

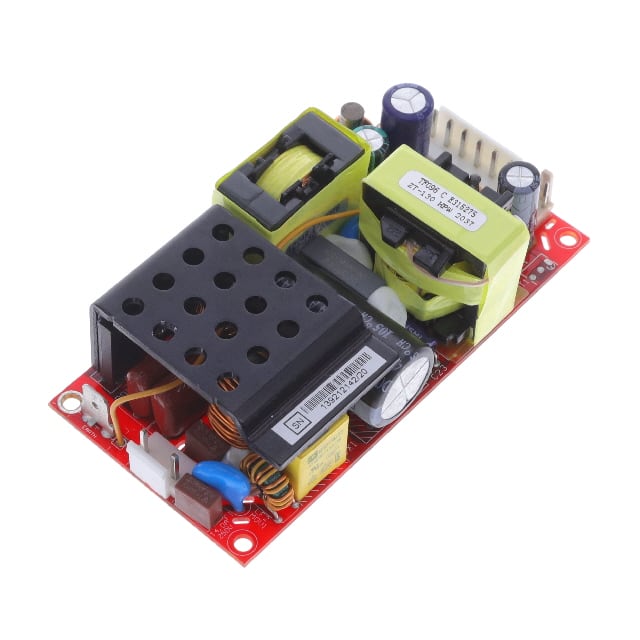

The GlobTek, Inc. GTM962250P22520A-F is a regulated switchmode AC-DC power supply designed for ICT, ITE, and medical applications. It features an open frame construction and chassis mount type.
This power supply operates with an input voltage range of 100-240V AC at 50-60 Hz. The output provides 20.0V at 11.25A, totaling 225W of power. It boasts a high efficiency rating of 95% and a dielectric strength of 4 kV. The operating temperature range is -25°C to 80°C with derating.
Key mechanical dimensions include a length of 101.6mm (4.00"), a width of 50.8mm (2.00"), and a height of 30.0mm (1.18"). The unit has a single output and meets various safety standards including CB, CE, cETLus, EAC, UkrSEPRO, and VCCI.
Compliance includes RoHS3, MSL 1, and REACH Unaffected. This power supply is suitable for household appliances, ITE (Commercial), and medical equipment.
The GTM962250P22520A-F provides an output voltage of 20.0V at 11.25A.
The GTM962250P22520A-F has a maximum output power of 225W.
This AC-DC converter has an efficiency rating of 95%.
The operating temperature range is -25°C to 80°C, with derating.
The dimensions are 101.6mm (Length) x 50.8mm (Width) x 30.0mm (Height).
The GTM962250P22520A-F uses chassis mount.
