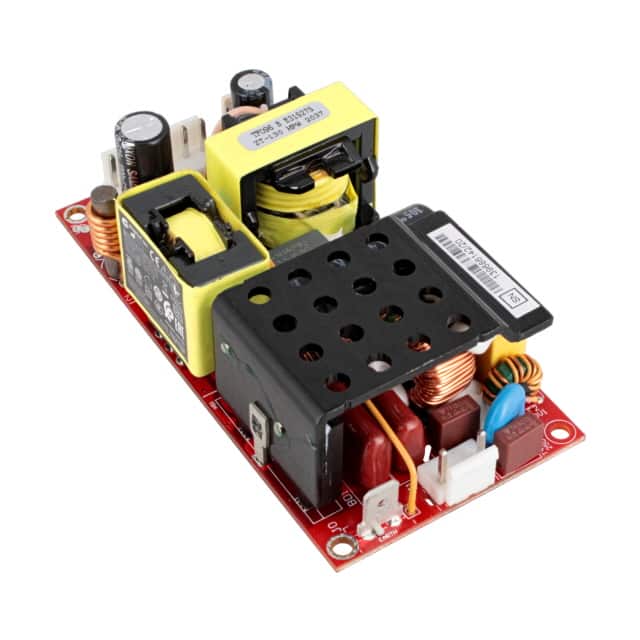

The GlobTek, Inc. GTM962250P22518A-F is a versatile AC/DC power supply designed for various applications. This open frame unit delivers a stable 18V output at 12.5A, totaling 225W of power.
It accepts a universal input voltage range of 100-240V~ at 50-60 Hz, making it suitable for global use. The converter operates with high efficiency, rated at 95%, and features a wide operating temperature range from -25°C to 80°C with derating.
Designed for chassis mounting, this power supply is ideal for integration into systems requiring a reliable and compact power solution. Key features include universal input and an isolation voltage of 4 kV. It meets several standard numbers including 60335-1, 60601-1, 60950-1, and 62368-1.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status. The GTM962250P22518A-F is suitable for applications in Household Appliances, ITE (Commercial), and Medical sectors.
The GTM962250P22518A-F provides an output voltage of 18.0V at 12.5A.
The GTM962250P22518A-F has a total power output of 225W.
The GTM962250P22518A-F supports a universal input voltage range of 100-240V~.
The operating temperature range is -25°C to 80°C, with derating.
The dimensions are 101.6mm (Length) x 50.8mm (Width) x 30.0mm (Height).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
