| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

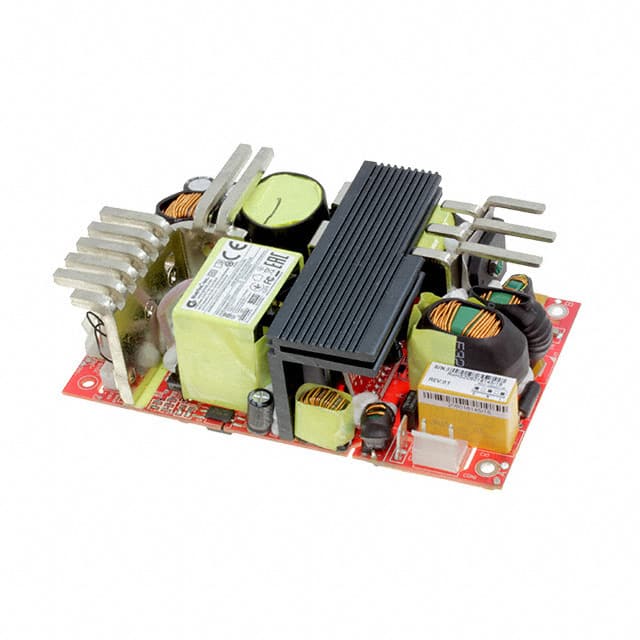

The GlobTek, Inc. GTM91110P24048FSIM(R is an open frame AC/DC converter designed for external or internal use. It provides a single output of 48V at up to 5A, delivering a total power of 240W.
This converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 90%. Key features include a 4 kV isolation voltage and suitability for ITE (Commercial) and Medical applications. The operating temperature range is -10°C to 50°C with derating.
Mechanically, the unit is designed for chassis mounting and measures 127.0mm x 76.2mm x 43.0mm. It complies with several standards, including 60601-1-11, 60601-1-2, and 60950-1. The RoHS status is ROHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is Unaffected.
The input voltage range is 90 to 264 VAC.
It provides a single output of 48V at 5A, delivering 240W.
The typical efficiency is 90%.
The operating temperature range is -10°C to 50°C with derating.
It is designed to comply with medical standards 60601-1-11 and 60601-1-2, and ITE standard 60950-1.
The input-to-output isolation voltage is 4 kV.
The converter is chassis mount and comes in bulk packaging.
