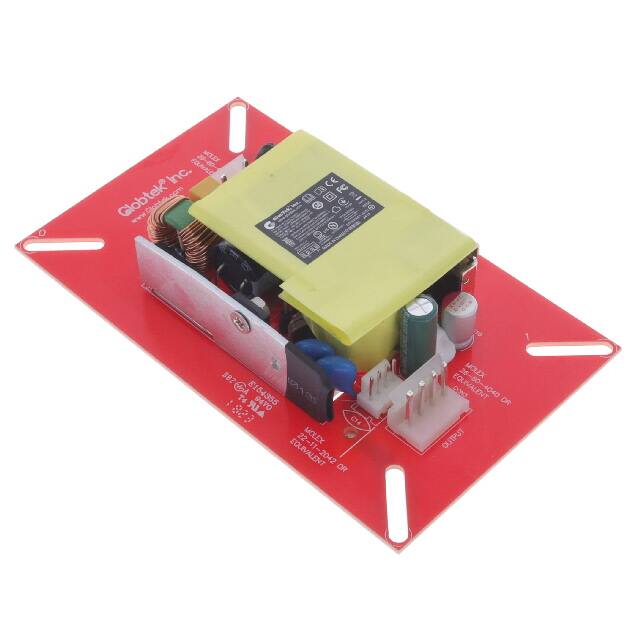

The GlobTek, Inc. GTM43007-C3005-FW(R) is an open frame AC/DC converter designed for various applications including household appliances, ITE (Commercial), and medical devices. It operates with a universal input voltage range of 90 to 264 VAC and delivers a stable 5V output at 6A, providing a total power of 30W.
This converter boasts an efficiency of 89% and features a 4 kV isolation voltage. Its dimensions are 127.0mm x 76.2mm x 30.5mm, making it suitable for chassis mounting. The operating temperature range is from -10°C to 45°C.
Compliance is indicated by RoHS3 status and it meets various safety standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. Approval agencies include CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, and UkrSEPRO.
90 to 264 VAC.
5V at 6A.
30W.
89%.
4 kV.
-10°C to 45°C.
Open frame, chassis mount.
