| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

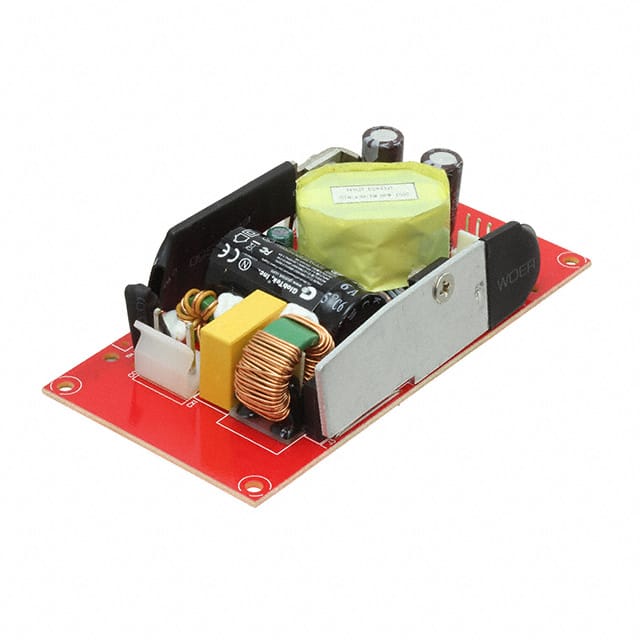

This GlobTek, Inc. AC/DC converter, part number GTM43007-B6030-FW(R), delivers 60W of power with a universal input feature. It is designed for chassis mounting and operates with an efficiency of 89%.
The converter is suitable for a range of applications, including household appliances, commercial ITE equipment, and medical devices. It meets various safety and performance standards such as CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, and UkrSEPRO.
Key electrical specifications include a power rating of 60W and an output current of 2A. The operating temperature range is from -10°C to 45°C. The dimensions of the unit are 101.6mm in length, 50.8mm in width, and 22.5mm in height.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. The part is also certified under multiple standard numbers including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
30V.
89%.
Open frame chassis mount.
-10°C to 45°C.
4 kV.
101.6mm x 50.8mm x 22.5mm (4.00" x 2.00" x 0.89").
CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO.
