| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

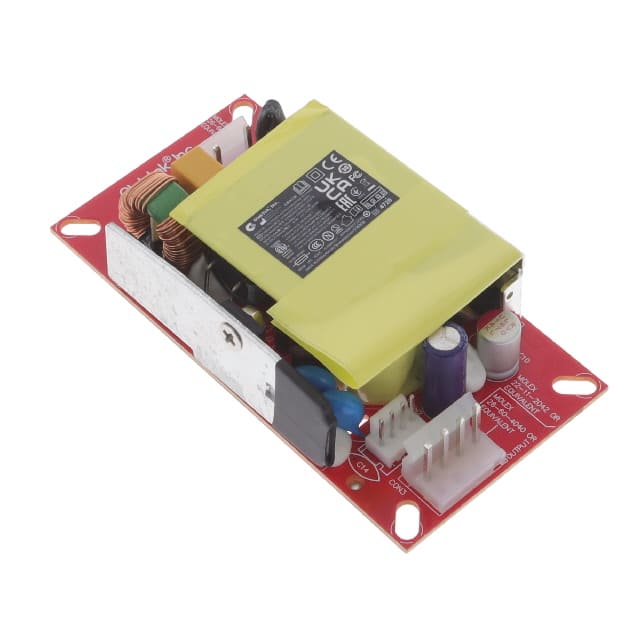

The GlobTek GTM43007-B3006-FW(R) is an open frame, internal regulated switchmode AC-DC power supply. It is designed for ICT/ITE and medical applications, offering a 6.0V output at 5.0A, delivering a total of 30W of power.
This power supply accepts a universal input voltage range of 100-240V~ at 50-60Hz. It features a chassis mount type and has dimensions of 101.6mm x 50.8mm x 23.6mm. The operating temperature range is -10°C to 45°C, and it provides 4kV voltage isolation.
Key specifications include 89% efficiency and universal input capability. The unit is compliant with various standards including CB 62368, ETL 62368, CE, and FCC. It is suitable for applications in household appliances, ITE (Commercial), and Medical fields.
The GTM43007-B3006-FW(R) provides a 6VDC output at 5A.
This AC-DC converter has a power rating of 30W.
The input voltage range is 100-240 VAC.
The operating temperature range is -10°C to 45°C.
This power supply uses chassis mount.
The dimensions are 101.6mm x 50.8mm x 23.6mm.
