| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

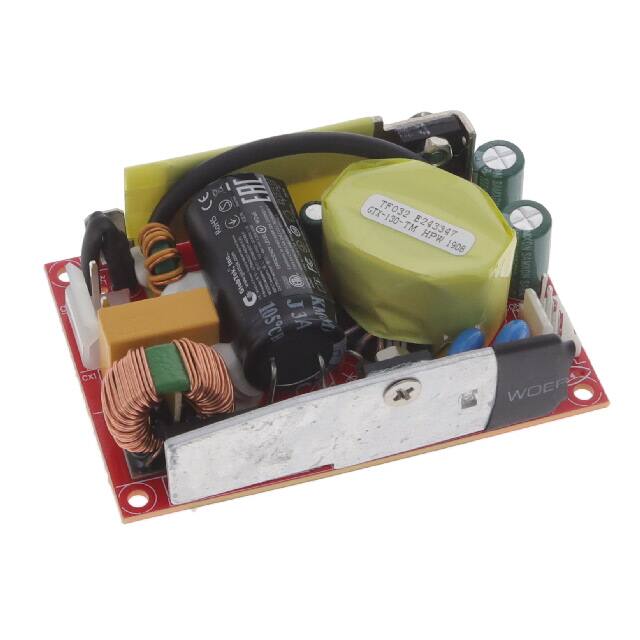

The GlobTek, Inc. GTM43007-A6048-F(R) is an open frame AC DC converter designed for various applications including household appliances, ITE (Commercial), and Medical. It features a universal input voltage range of 90 to 264 VAC and delivers a power output of 60W with an efficiency of 89%.
This converter has a single output and provides 4 kV of isolation voltage. It is designed for chassis mounting and operates within a temperature range of -10°C to 45°C. The dimensions are 76.2mm x 50.8mm x 22.5mm.
Compliance is indicated by RoHS3, REACH Unaffected, and MSL 1 Unlimited status. It meets several standard numbers including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1, and is approved by agencies such as CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
-10°C to 45°C.
Open frame.
90 to 264 VAC.
48V DC.
89%.
CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, VCCI.
4 kV.
