| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

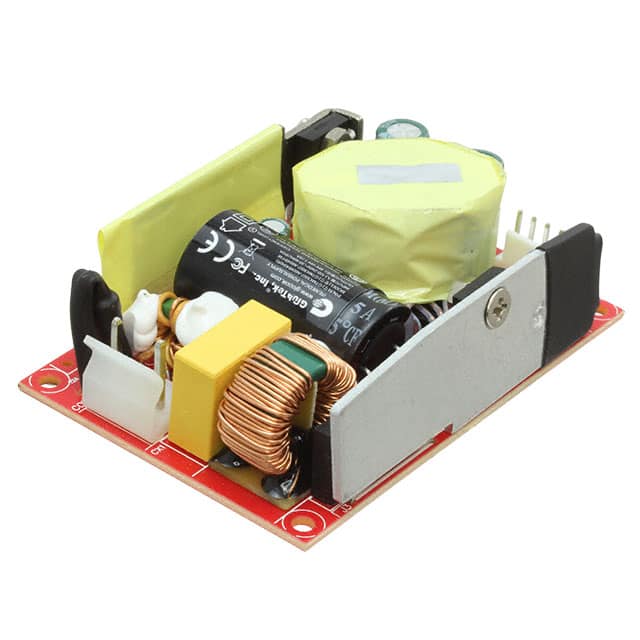

This GlobTek, Inc. AC/DC converter, part number GTM43007-A6024-FW(R), delivers 60W of power with a 2.5A output current. It is designed as an open frame unit for convenient chassis mounting.
The converter operates with a universal input and offers an efficiency of 89%. Key electrical specifications include a 24V output voltage and an isolation voltage of 4 kV. The operating temperature range is from -10°C to 45°C.
Designed for applications in household appliances, ITE (Commercial), and medical devices, this converter meets various safety standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. It is approved by multiple agencies such as CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, and UkrSEPRO.
Mechanical dimensions are 76.2mm in length, 50.8mm in width, and 22.5mm in height. The product is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
The output is 24V at 2.5A.
The power rating is 60W.
The operating temperature range is -10°C to 45°C.
The dimensions are 76.2mm x 50.8mm x 22.5mm (3.00" x 2.00" x 0.89").
It complies with 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
The efficiency is 89%.
