| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

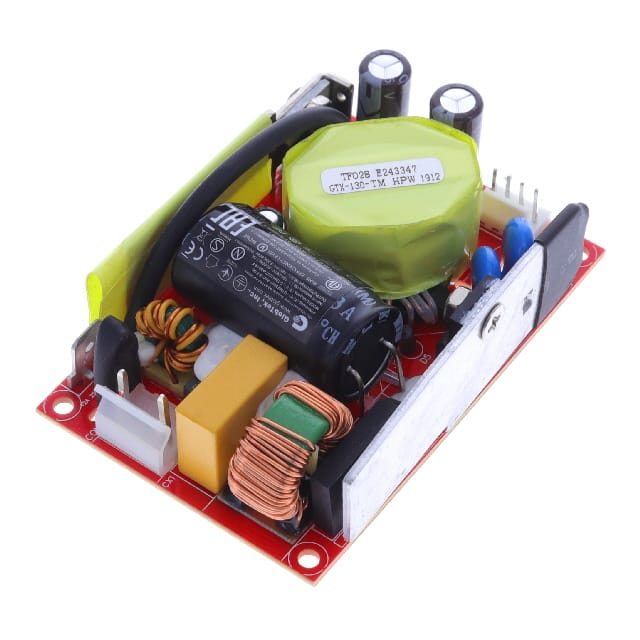

The GlobTek GTM43007-A6018-F(R) is an open frame AC-DC converter designed for commercial and medical applications. It provides a single 18V output at 3.33A, delivering 60W of continuous power.
Key specifications include a universal input range, 89% efficiency, and 4kV isolation voltage. The converter operates over a temperature range of -10°C to 45°C and meets safety standards including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
The unit is chassis mountable with dimensions of 76.2mm x 50.8mm x 22.5mm. It is approved by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
It delivers 60W at 18V with a maximum output current of 3.33A.
4 kV input-to-output isolation.
89%.
Chassis Mount.
-10°C to 45°C.
Approved by CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
Household appliances, ITE (commercial), and medical equipment.
