| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

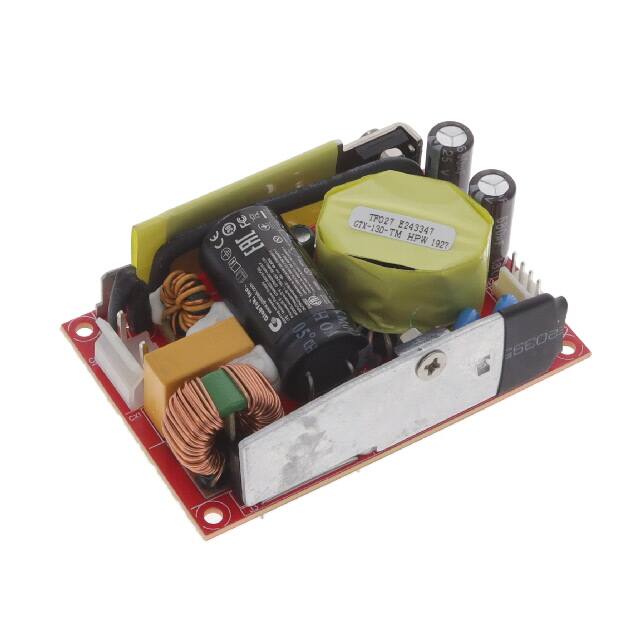

This GlobTek, Inc. AC/DC converter, part number GTM43007-A6015-F(R), is designed for efficient power conversion. It operates with a universal input and provides a 60W output power with a single output.
The converter features a chassis mount type and an open frame construction, making it suitable for integration into various systems. Its dimensions are 76.2mm x 50.8mm x 22.5mm.
Key electrical specifications include an output current of 4A and an efficiency of 89%. The operating temperature range is -10°C to 45°C. It meets several standard numbers including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1, and is approved by multiple agencies such as CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
Environmental compliance includes RoHS3 compliance and an MSL of 1 (Unlimited). The REACH status is unaffected.
-10°C to 45°C.
15V at 4A, 60W.
89%.
4kV.
CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, VCCI.
76.2mm x 50.8mm x 22.5mm.
Chassis Mount.
