| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

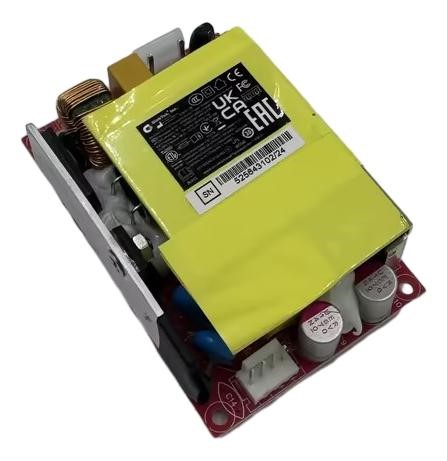

The GlobTek, Inc. GTM43007-A4512-FW(R) is a versatile open frame AC-DC power supply designed for various applications including household appliances, ITE, and medical equipment. It provides a stable 12V DC output with a maximum current of 3.75A, delivering a total of 45W of power.
This power supply accepts a wide input voltage range of 100-240V AC at 50-60 Hz, ensuring compatibility in global markets. It features an efficiency rating of 89% and offers 4kV of isolation voltage. The operating temperature range is from -10°C to 45°C.
Designed for chassis mounting, the GTM43007-A4512-FW(R) has dimensions of 76.2mm x 50.8mm x 23.6mm. It is approved by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, and UkrSEPRO, meeting standards such as 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. The unit has a single output and features universal input capability.
100-240 VAC.
12V DC.
3.75A.
45W.
89%.
-10°C to 45°C.
Open frame chassis mount.
