| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

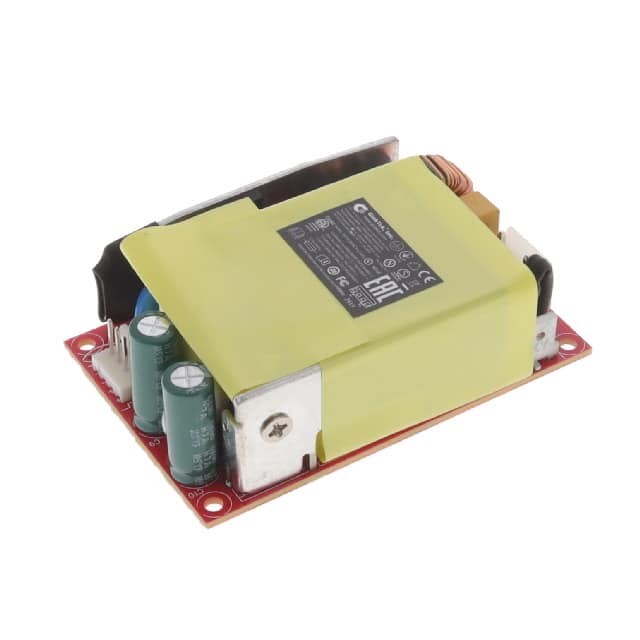

This AC/DC converter from GlobTek, Inc., part number GTM43007-A4509-F(R), is an open frame unit designed for chassis mounting. It delivers 45W of power with a 5A output current and operates with universal input.
The converter features an efficiency of 89% and has a dielectric strength of 4 kV. Its operating temperature range is -10°C to 45°C. It is suitable for applications including household appliances, ITE (Commercial), and medical devices.
Key specifications include a length of 76.2mm, width of 50.8mm, and height of 23.6mm. The unit has one output and meets various standard numbers such as 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. It is also approved by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
The output is 9V at 5A, providing 45W of power.
The operating temperature range is -10°C to 45°C.
It uses chassis mount.
It achieves 89% efficiency.
The dimensions are 76.2mm (length) x 50.8mm (width) x 23.6mm (height).
It holds approvals from CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
It is designed for household appliances, ITE (commercial), and medical applications.
