| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

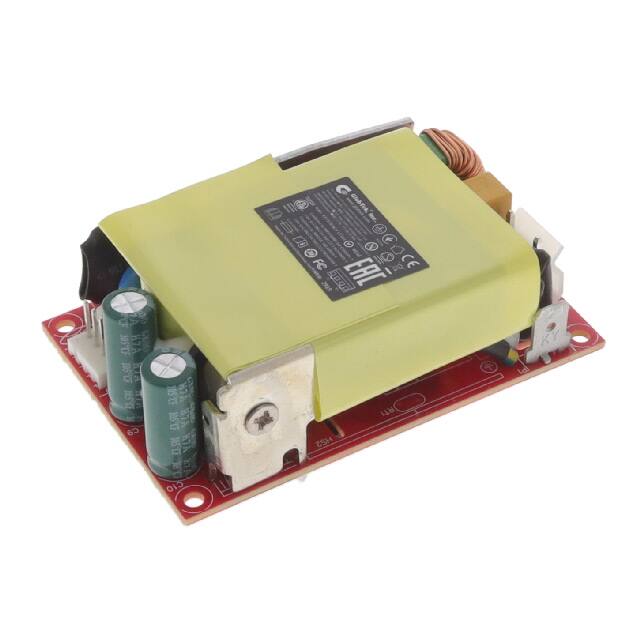

The GlobTek, Inc. GTM43007-A3807.5-F(R) is an open frame AC/DC power supply converter designed for various applications including household appliances, ITE (Commercial), and medical equipment. It operates with a universal input and provides a single output of 38W at 5A.
Key electrical specifications include an efficiency of 89% and an isolation voltage of 4 kV. The converter is designed for chassis mounting and operates within a temperature range of -10°C to 45°C. It adheres to several standard numbers, including 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1, and has received numerous agency approvals such as CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO, and VCCI.
The physical dimensions are 76.2mm in length, 50.8mm in width, and 23.6mm in height. The part is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
-10°C ~ 45°C
RoHS3 Compliant
1 Unlimited
REACH Unaffected
38W
5 A
Chassis Mount
