| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

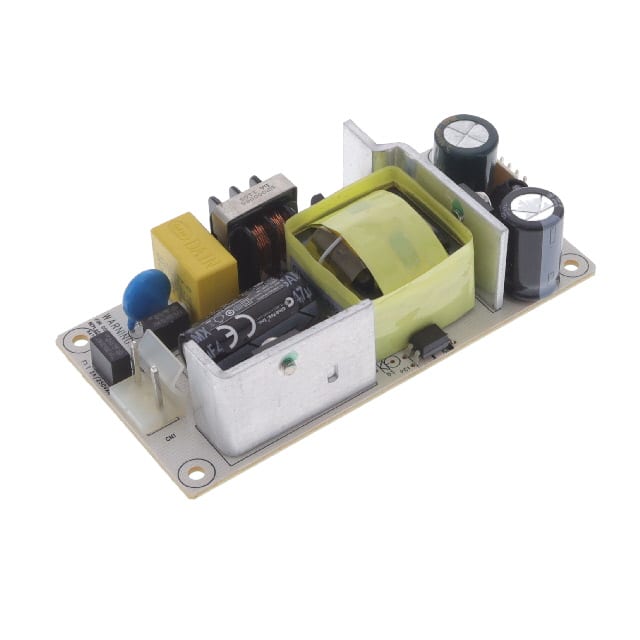

The GlobTek GTM410602524FWIM(RE) is an open frame, chassis mount AC/DC power supply designed for ITE and medical applications. It provides a stable 24V DC output at 1.04A, delivering a maximum power of 25W. The converter accepts a wide input voltage range of 100-240V AC and features 80% efficiency.
Key electrical specifications include a line regulation of +/- 1% maximum at full load and an output regulation of +/- 5% of nominal output voltage. It has a turn-on delay of 3000 ms maximum and a hold-up time of 10 ms minimum. Over-voltage and over-load protection are included, utilizing a hiccup mode with auto-recovery.
With dimensions of 98.0mm x 50.0mm x 28.0mm, this power supply is suitable for integration into systems where space is a consideration. It is certified by multiple agencies including CB, CE, cUR, cURus, FCC, GOST-R, NEMKO, UkrSEPRO, and VCCI, meeting standards such as 60601-1 and 60950-1.
100-240 VAC.
24 VDC.
25 W maximum.
0°C to 40°C.
Yes, hiccup with auto recovery.
UL 60601-1 and IEC 60950-1.
Open frame with chassis mount.
