| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

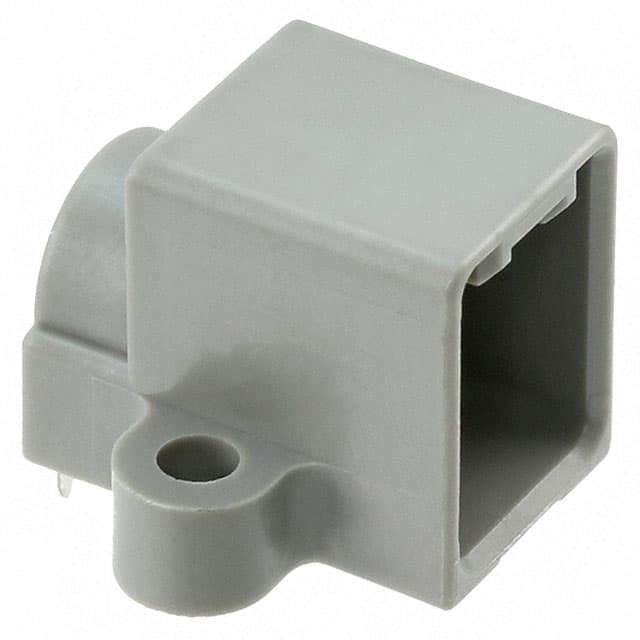

The Hirose Electric GT16C-1P-DS is a coaxial connector receptacle with a male pin contact, designed for 50 Ohm impedance and operating up to 3 GHz. It features a push-pull fastening mechanism and a right-angle through-hole mounting style, making it suitable for space-constrained PCB layouts.
Electrical specifications include a current rating of 1 A, voltage rating of 250 V AC, contact resistance of 30 mΩ maximum, and insulation resistance of 100 MΩ minimum. The connector withstands 650 V AC for one minute without breakdown.
Mechanically, the connector is rated for 30 mating cycles and operates over a temperature range of -40 to +105 °C. The center contact is made of phosphor bronze, and the gray housing includes a mounting flange for secure attachment.
This connector is part of the GT16 series from Hirose, designed for automotive antenna and in-car communication applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.33 | $3.33 |
| 5+ | $3.09 | $3.09 |
| 10+ | $2.99 | $2.99 |
| 25+ | $2.86 | $2.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
3 GHz.
1 A.
250 V AC.
Through hole, right angle.
-40 to +105 °C.
30 cycles.
