| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
944 pcs
|
944 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight |

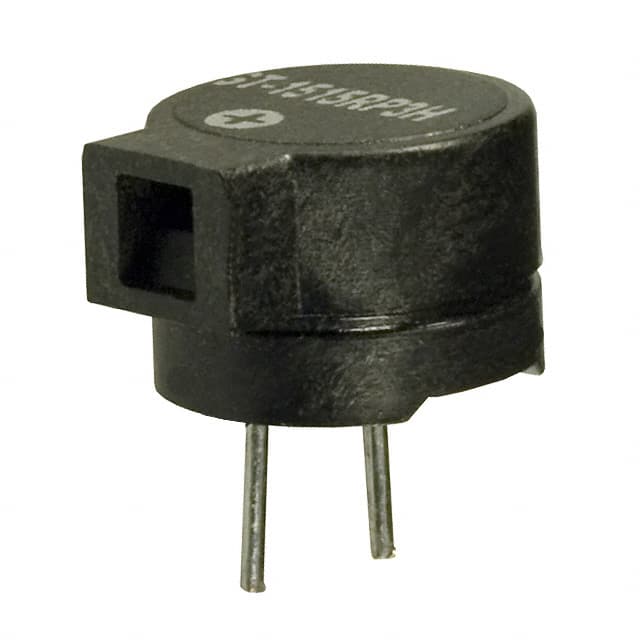

The Soberton Inc. GT-1515RP3H is a magnetic transducer buzzer designed for single-tone audible indication. It operates with a zero-peak signal input and is externally driven. The rated voltage is 1.5V with an operating range of 1 to 2V. Current consumption is 80mA at rated voltage.
The buzzer produces a sound pressure level of 96dB at 10cm with a resonance frequency of 3.1kHz. It is housed in a 9.60mm diameter, 6.80mm height through-hole package with PC pin termination and side port location. Operating temperature range is -20°C to 80°C. Weight is 5g.
The rated voltage is 1.5V with an operating range of 1 to 2V.
The sound pressure level is 96dB typical at 1.5V, measured at 10cm.
The resonance frequency is 3.1kHz.
Through-hole mounting with PC pin termination.
-20°C to 80°C.
