| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight |

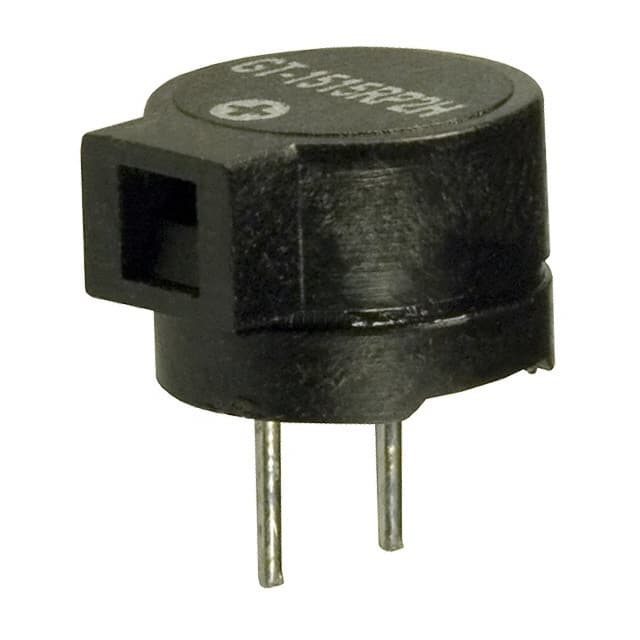

The GT-1515RP2H from Soberton Inc. is a magnetic buzzer designed for low-voltage applications. Rated at 1.5V with an operating range of 1-2V, it delivers a sound pressure level of 90dB at 10cm. The nominal resonant frequency is 2.73kHz, and maximum current consumption is 80mA under rated conditions. This buzzer uses a transducer, externally driven design with a zero-peak signal input. The 9.6mm diameter package features through hole mounting with PC pin termination. Operating temperature range is -20°C to 80°C, with storage from -30°C to 80°C. Coil resistance is 9.6 ohms. Weight is 1.5 grams. Suitable for alarms, portable devices, and battery-powered electronics requiring audible alerts.
The operating voltage range is 1 to 2V, with a rated voltage of 1.5V.
The nominal resonant frequency is 2.73kHz (2730Hz).
The typical SPL is 90dB at 1.5V, 10cm, and 96dB at rated voltage, 2730Hz, 1/2 duty cycle square wave.
The driver circuitry is a transducer, externally driven.
The mounting type is through hole with PC pins termination.
Maximum current consumption is 80mA at rated voltage, 2730Hz, 1/2 duty cycle square wave.
The nominal coil resistance is 9.6 ohms.
