| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
606 pcs
|
606 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range | |
| Weight |

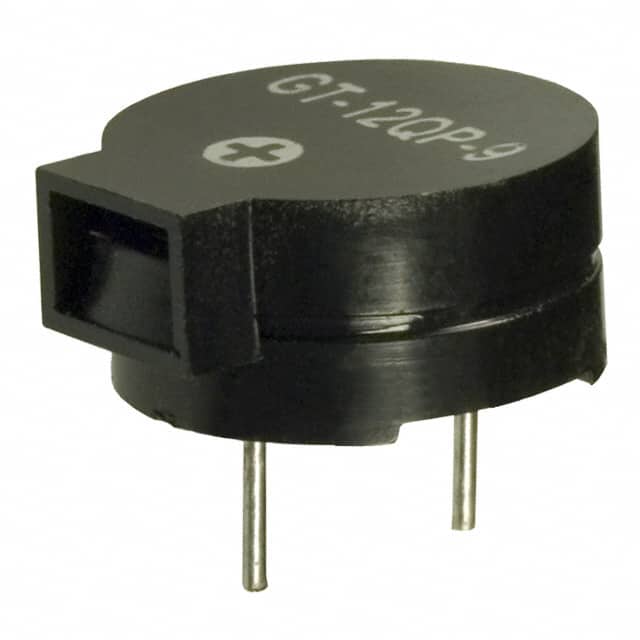

The GT-12QP-9 is a magnetic buzzer from Soberton Inc. It uses magnetic transducer technology and is externally driven with a zero-peak signal input. The buzzer operates in single tone mode at a nominal voltage of 1.5V, with an operating range of 1 to 2V. Maximum current consumption is 70mA at 1.5V. It produces a sound pressure level of 90dB typical at 10cm with a resonance frequency of 2.73kHz.
The buzzer has a diameter of 12.00mm and a height of 6.00mm. It features a side port for sound emission and is designed for through-hole mounting with PC pin termination. The operating temperature range is -20°C to 60°C, and storage temperature range is -30°C to 70°C. The component weighs approximately 1g.
This buzzer is suitable for low-voltage audio alert applications in consumer electronics, industrial indicators, and portable devices. Compliance with RoHS, REACH, and MSL level 1 is claimed but unverified.
1.5V nominal, with an operating range of 1 to 2V.
2.73kHz.
90dB typical at 10cm with 1.5V input.
Transducer, externally driven.
Through hole with PC pin termination.
-20°C to 60°C.
70mA at 1.5V.
