| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
994 pcs
|
994 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Washable |

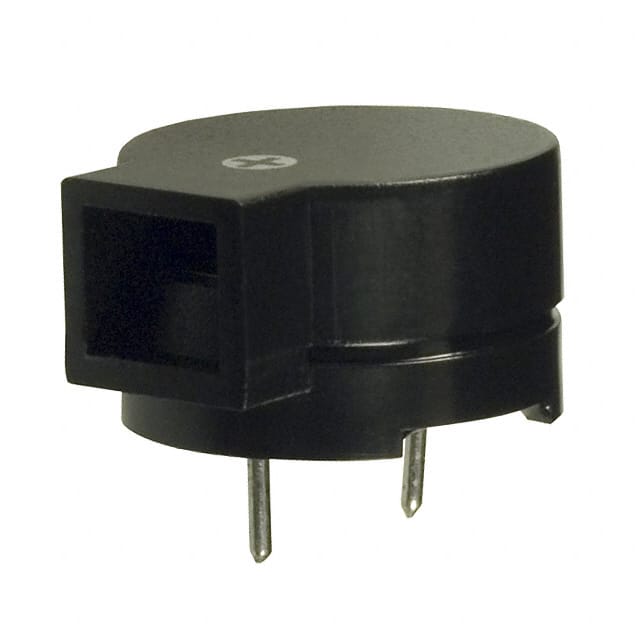

The GT-12QP-3 is a magnetic buzzer from Soberton Inc., designed as an externally driven transducer. It produces a single tone at a resonance frequency of 2730 Hz with a typical sound pressure level of 92 dB measured at 10 cm when driven by a 1.5V square wave at 50% duty cycle.
Electrically, the buzzer has a rated voltage of 1.5 V and a voltage range of 1 to 2 V. It consumes 70 mA of current under nominal conditions. The driver circuitry is external, requiring a zero-peak signal input.
Mechanically, the GT-12QP-3 features a 12.0 mm diameter and a height of 7.5 mm. It mounts via through-hole with PC pin terminals and has a side port for sound emission. The operating temperature range is -20°C to +60°C.
The buzzer is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is not washable. This device is suitable for applications requiring an audible alert in a compact, through-hole package.
The rated voltage is 1.5V with an operating range of 1 to 2V.
The resonance frequency is 2730 Hz.
Typical SPL is 92 dB measured at 10cm with a 1.5V drive signal.
It is an externally driven transducer requiring a zero-peak signal.
Through-hole mounting with PC pin terminals.
70 mA typically at rated voltage.
-20°C to +60°C.
