| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range |

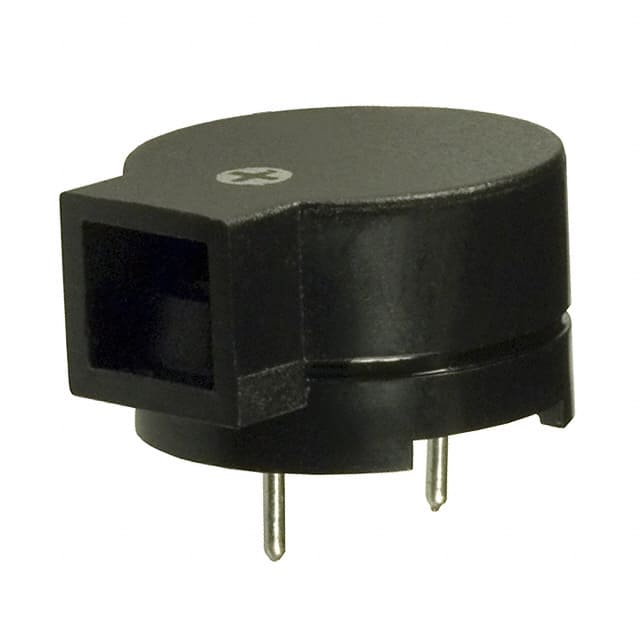

The GT-12QP-1 is a magnetic transducer buzzer from Soberton Inc., designed for audible alert applications. It operates at a rated voltage of 1.5V within a voltage range of 1V to 2V, drawing 35mA of current. The buzzer produces a single tone at its resonance frequency of 2.048kHz and delivers a minimum sound pressure level of 85dB when measured at 10cm with 1.5V applied.
This through-hole device features a side port and a 12.00mm diameter with a height of 7.80mm, terminating in PC pins for easy integration onto circuit boards. It uses external driver circuitry and accepts a zero-peak signal input. The operating temperature range is -20°C to 60°C, and the storage temperature range is -30°C to 70°C.
The buzzer is suitable for general audio alerting in electronic equipment where a compact, reliable sounder is needed. Its magnetic technology ensures consistent tone generation with minimal power consumption.
The rated voltage is 1.5V with an operating voltage range of 1V to 2V.
The resonance frequency is 2.048kHz.
It produces a minimum of 85dB SPL when measured at 10cm with 1.5V applied.
Through hole mounting with PC pin termination.
-20°C to 60°C.
External drive circuitry; it is a transducer, not a self-driven indicator.
