| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
661 pcs
|
661 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range |

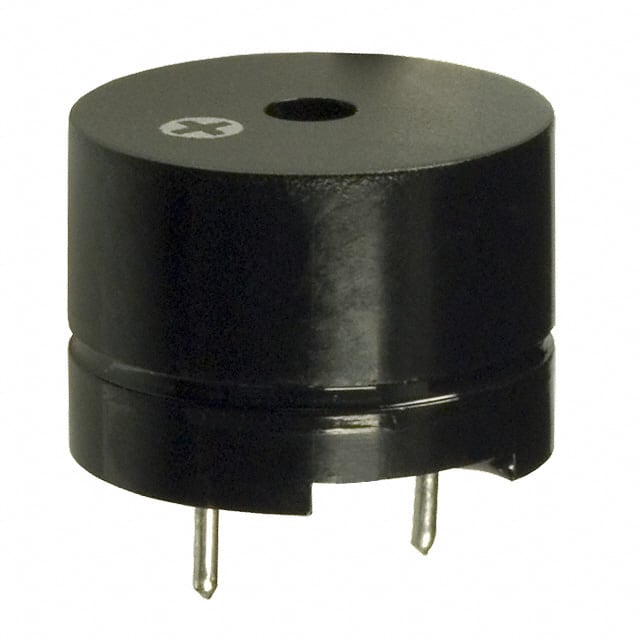

The Soberton GT-11PB is a through-hole magnetic transducer buzzer belonging to the GT series. It operates as a single-tone, externally driven device requiring a zero-peak signal input. The buzzer is rated at 1.5V with a voltage range of 1 to 2V and draws a nominal current of 35mA.
At the rated voltage and a distance of 10cm, the GT-11PB delivers a sound pressure level of 87dB, with a typical resonant frequency of 2.73kHz. The magnetic technology provides reliable audio output for alert and indication applications.
Mechanically, the buzzer has a 12.00mm diameter and 8.80mm height, with a top-firing port. It mounts via through-hole PC pins and is designed for an operating temperature range of -20°C to 60°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 10+ | $0.55 | $0.55 |
| 25+ | $0.49 | $0.49 |
| 50+ | $0.45 | $0.45 |
| 100+ | $0.42 | $0.42 |
| 250+ | $0.38 | $0.38 |
| 500+ | $0.35 | $0.35 |
| 1,000+ | $0.32 | $0.32 |
| 5,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GT-11PB has a rated voltage of 1.5V with a voltage range of 1 to 2V.
The nominal current is 35mA.
It produces 87dB SPL measured at 10cm with a 1.5V input.
The typical operating frequency is 2.73kHz.
The mounting type is through hole with PC pins.
No, it is a transducer, externally driven, requiring an external drive circuit.
