| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| LED Color | |
| Lead Spacing | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

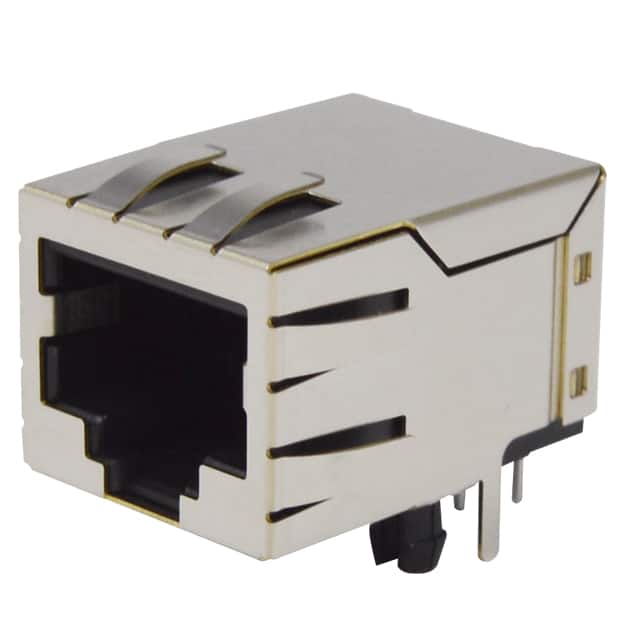

The Kycon GSX-NS-88-3.05 is a fully shielded right angle modular jack from the GSX series, designed for Category 5 Ethernet applications. It features 8 positions and 8 contacts (8P8C) with a tab direction down, and is rated for Cat5 performance.
Electrical specifications include a current rating of 1.5 A, voltage rating of 125 V, insulation resistance of 500 MΩ minimum, dielectric withstanding voltage of 1000 V AC RMS, and contact resistance of 20 mΩ maximum. The operating temperature range is -40°C to +85°C, with a durability rating of 750 mating cycles minimum.
The housing is made of PBT thermoplastic, glass filled, UL 94V-0 rated, black color. The shield is copper alloy with nickel plating. Contacts are phosphor bronze with gold finish. The connector includes a board lock feature for secure PCB mounting. It is CSA/NRTL certified (File No. LR78160) and UL recognized (File No. E134345).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.84 | $1.84 |
| 10+ | $1.56 | $1.56 |
| 25+ | $1.40 | $1.40 |
| 100+ | $1.26 | $1.26 |
| 220+ | $1.19 | $1.19 |
| 1,100+ | $1.11 | $1.11 |
| 2,640+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1.5 A.
The voltage rating is 125 V.
It uses through hole mounting with solder termination.
Yes, it is fully shielded with a copper alloy, nickel plated shield.
The operating temperature range is -40°C to +85°C.
The durability rating is 750 mating cycles minimum.
Contacts are phosphor bronze with a gold finish.
