| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

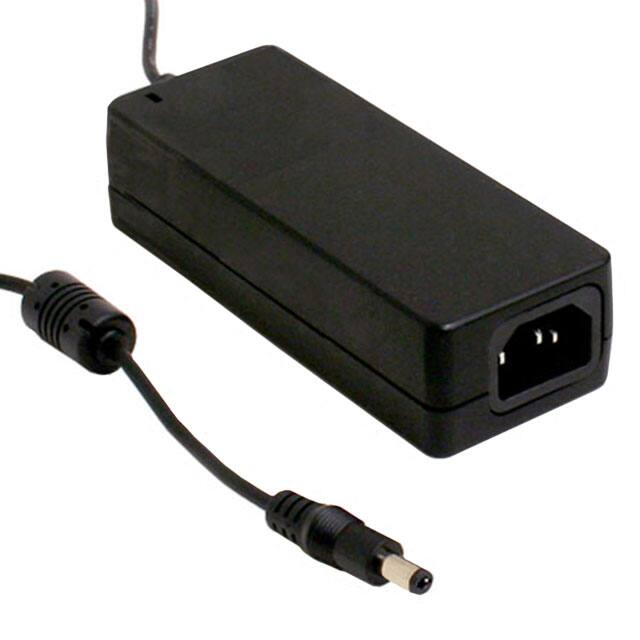

The Mean Well USA GST60A24-P1MR is a versatile AC/DC external desktop adapter with a power output of 60W. It delivers a stable 24V output at a maximum current of 2.5A, suitable for various ITE (Commercial) applications.
This adapter meets Efficiency Level VI standards, ensuring optimal energy consumption. It features a Class I desktop form factor and utilizes an IEC 320-C14 input connector, with the input cord sold separately. The output connector is a standard Barrel Plug R/A, measuring 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
Designed for international use, the GST60A24-P1MR operates within a wide input voltage range of 90-264 VAC. Its compact dimensions are 125.0mm x 50.0mm x 31.5mm, making it suitable for space-constrained environments. The operating temperature range is from -30°C to 70°C, providing reliability in diverse conditions. The adapter also boasts a low no-load power consumption of 75mW (Max).
The GST60A24-P1MR provides an output voltage of 24V at a maximum current of 2.5A.
The GST60A24-P1MR adapter has a power rating of 60W.
The input voltage range for the GST60A24-P1MR is 90-264 VAC.
The operating temperature range for the GST60A24-P1MR is -30°C to 70°C.
The GST60A24-P1MR uses a Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm output connector.
The dimensions of the GST60A24-P1MR adapter are 125.0mm x 50.0mm x 31.5mm.
